So I spent some time on making it possible to leverage from Aux input pad in GEGL operations and I think I have some kind of working version of it.
Now it could be possible to use it for many cases where at least two inputs are taking a part. In order to make it work I had to introduce a dedicated GEGL operation property âAux Modeâ which is an enum and can be one of given values:
Input ROI as Output ROI - in this mode both input and aux pads are used in GâMIC processing but the input boundaries are used as output,
As Output ROI - similar like the previous one but this time aux boundaries are used this time for output bounding box,
As Output ROI only - in this mode the aux input is used only to determine the output bounding box and only input pad is included in GâMIC processing

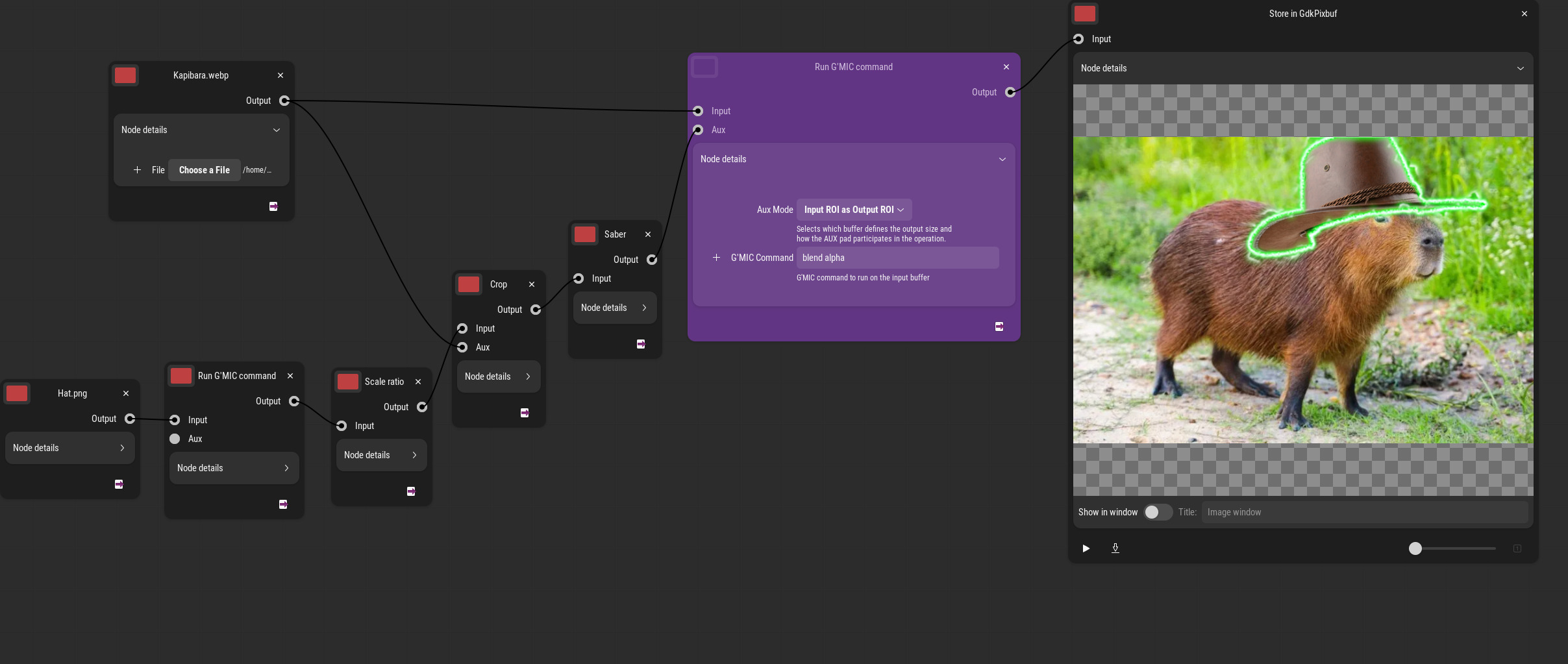

Various scenarios are possible now, first example for alpha blending:
this shows a default mode, in which the input pad determines the output boundary. In this flow the input Hat.png is much bigger than the capibara so it had to be scaled and cropped accordingly with GEGL operations

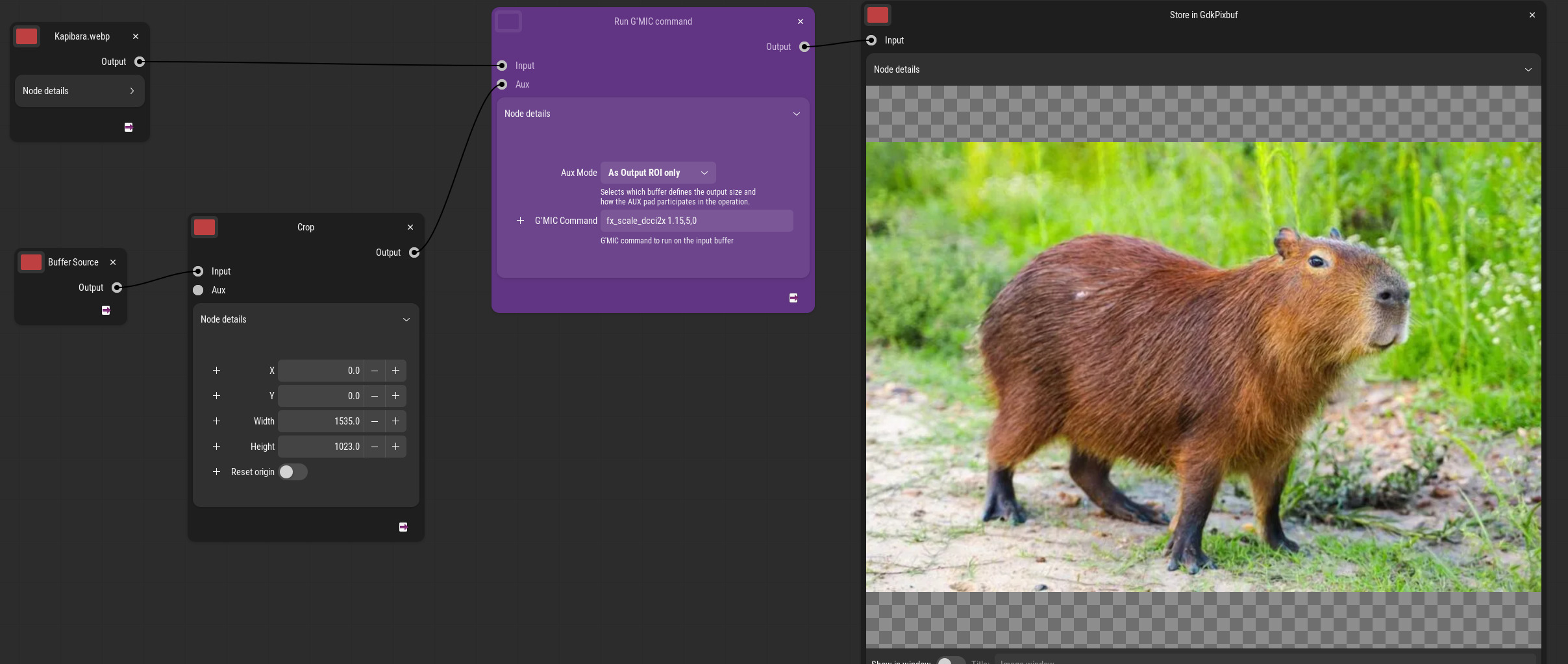

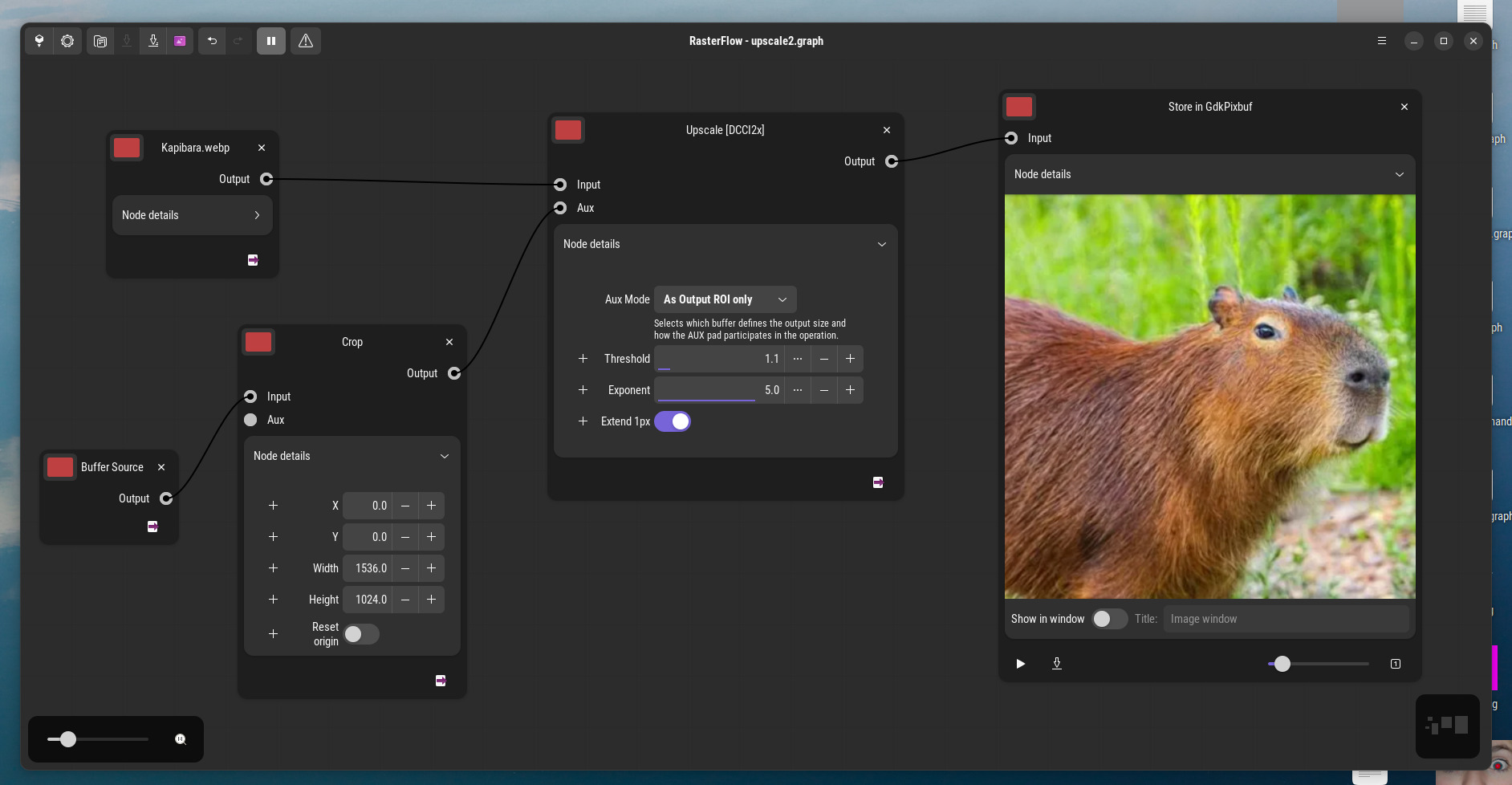

Here I use upscaling via GâMIC, but there is a catch here - GEGL does not allow to dynamically modify the boundary after processing is done, and here we make the image twice itâs original size so the correct, doubled bounding box has to be provided and this is achieved by scaling an empty buffer and passing it into aux pad set to âAs Output ROI onlyâ so it wont be processed by GâMIC itself.
Iâd like to hear your opinion I know it might look kinda exotic tho hehe.
Hello @activey , that looks really good, thanks for your work!
Cough Sorry, what did I just read?
Seems like that will slightly complicate the use of GâMIC filters that needs to have an output image that is different than the input.
But if this is by design⌠Itâs already super cool you have found a workaround for that !!
Thatâs interesting.
Iâm wondering if that could be interesting to have an checkbox option, checked by default, that automatically resizes the output image with the same size as input.
Of course, this wouldnât have much sense to use for some filters (part. upscaling filters), but for others, that could be a quite acceptable solution (I think of fx_array_random for instance).
There are a few filters that just slightly change the dimension of the input (adding a few pixel wide here and there), and for those, having this auto-resize output option would definitely make sense (I think of the various Frames filters for instance).
Note that you can use GâMIC itself to do that, by doing something as:
WH:=w,h fx_something arg1,arg2,... gui_merge_layers r $WH,1,100%,2
Behavior :
If the output image is larger than the input, it uses a nice âmoving average methodâ to reduce the resolution.
If the output image is smaller than the input, it uses a nearest-neighbor interpolation (which seems to be a good default for this case, as any other interpolation will introduce smoothing).
