Irish Coast: Brightness adjustments with Filmulator

This is an example of how Filmulator makes good-looking tonemapping trivial.

What? Tonemapping?

Yeah, here’s the out-of-camera JPEG:

This is how it’s done, starting with Filmulator’s default profile.

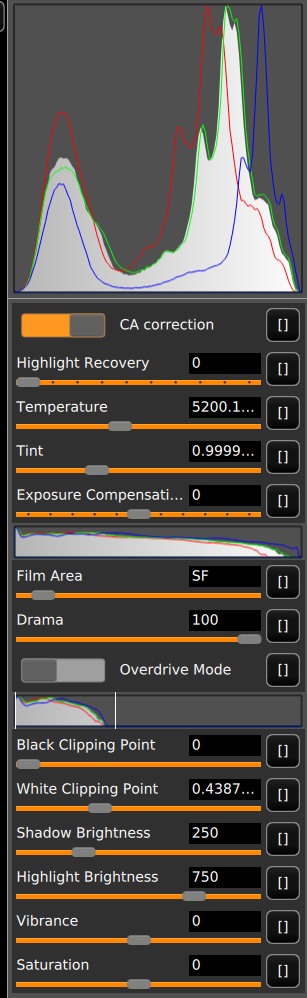

Notice that it already has significantly brighter shadows, but I want better. So I told Filmulator to correct chromatic aberration, then I turned Drama to 100 to pull down the highlights.

Then I dragged down the white clipping point until it was just to the right side of the post-Filmulator histogram (the bottom mini histogram).

This brightens the highlights back up, but also the shadows.

And there we have it. Two sliders and a switch, about 15 seconds of work, and we have a pleasing output. (It’s not the best photo but it’s a great demonstration.)

Here’s the raw if you want to play with it.

2 Likes

The result doesn’t quite convince me to be honest. It looks flat and the clouds look very painted (because of haloing I reckon). I did a quick edit in GIMP to see how it would look if processed differently:


I essentially masked of the dark parts using a luminosity mask and brought them back up using curves.
I think the landscape has a bit more of a 3D effect this way, plus the clouds still look natural. But that’s all subjective of course.

Edit: At a second glance, I completely overdid the sharpening, ignore that. :smile:

1 Like

How large are you viewing it? The halos become unnoticeable if you view it larger, like from one image diagonal away. It depends on the film area I set, as shown in my more recent post.

On a 30" 2560x1600 screen, and I’m sitting right in front of it so I doubt that’s the issue.

Maybe I can try a smaller film area on this. What do you think?

Also, my personal feeling is that the plants in the shadows of your rendition are rather more intensely green than what I remember from the scene.

1 Like

[quote=“CarVac, post:6, topic:347, full:true”]
Also, my personal feeling is that the plants in the shadows of your rendition are rather more intensely green than what I remember from the scene.
[/quote]Used my default darktable preset to convert it to tiff for use in gimp. That has a little bit of velvia (saturation increase in the mid tones) in it.

The version with the smaller film area does look like it has some more depth to me. :smile: The effect on the clouds is still there though.

1 Like

Personally, I really like the pop it gives to clouds, like in this photo:

Imgur

Other times it definitely can be overdone, like here:

Imgur

(this was intentionally done because I thought the shapes were interesting and it had no contrast originally)

Reminds me a little of the way that color2grey (C2G) works in GEGL. Weighted micro-contrasts.

I’d link the GEGL ops page, but it appears to render quite poorly at the moment…

http://gegl.org/operations.html#operation%20gegl%3Ac2g

I am not sure if “tone mapping” is the right name for this (well, technically it is, but in general it is mostly used to describe ways to turn HDR into LDR images). Nevertheless, I gave it a quick try in darktable:

3 Likes

I find interesting the difference between the ‘haloless’ tone mapping you performed and Filmulator; your rendition hides the dramatic brightness difference between the shoreline and the adjacent water in the bottom-right, but has greater overall local contrast elsewhere.

What method(s) did you use?

  • exposure: +1 EV
  • local contrast: courseness: 50, contrast: 20, detail 0.2
  • shadows and highlights: shadows: 60, highlights: -50, soften with: bilateral filter
  • denoise (profiled): mode: wavelets, strength: 1.0, blend: uniformly, blend mode: HSV color

By the way, you can see this for yourself in darktable by treating the JPG as an XMP file:

  • Open the raw file and select it in the lighttable
  • Open the “history stack” module on the right, and click “load sidecar file”
  • Change the file type selector in the bottom right to “all files”
  • Navigate to the JPG file that was output from darktable

Then you can just open the file in the darkroom and explore the edits, using the history stack to compare before/after.

Regards,

Rob

2 Likes

I also did some experimenting with the Irish coast image, mostly to learn how to use the bilateral filter for generating halo-less luminosity masks.

In my case, I blended two versions of the same RAW file, one at nominal exposure and one with +2.5ev compensation, using a bilateral-based luminosity mask.

Then I applied some S-shaped RGB curve and some slight HiRaLoAm local contrast enhancement to the blended image, mostly to enhance the overall contrast.

The whole procedure is definitely more complex than tweaking a couple of sliders :wink:

Here it is:

1 Like

Holy crap that is a neat tip! Thank you for that! :smile:

I just stumbled upon this thread. That’s Dingle bay :slight_smile: Did you see Fungie?

I did see Fungie. We walked out towards the tip of the coast there, and back, and at about the same spot where I took this picture, we spotted Fungie performing for some boats.

Imgur

:slight_smile: Great, so he’s still alive!

this Fungie portrait I shot about 8 years ago

4 Likes

Just linking your image directly so everyone can see it embedded (and it’s awesome, btw)!
