How to do a tryptic

[foto (Syv)]

DT 5.6.1 on debian

How to have 3 images in the same print? I want to do a tryptic of 3 photos on the same print.

Can it be done in DT? If not, what could I use? I have not used gimp in literally 10 years (hopefully something else).

Thanks

[AtaraxicShrug (Rob)]

GIMP (or similar program) would be faster and easier. Plenty of tutorials on youtube.

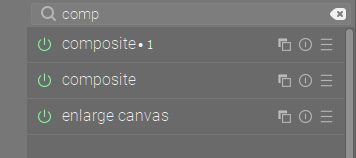

It might be workable in dt using Expand Canvas and Composite modules.

[priort (Todd Prior)]

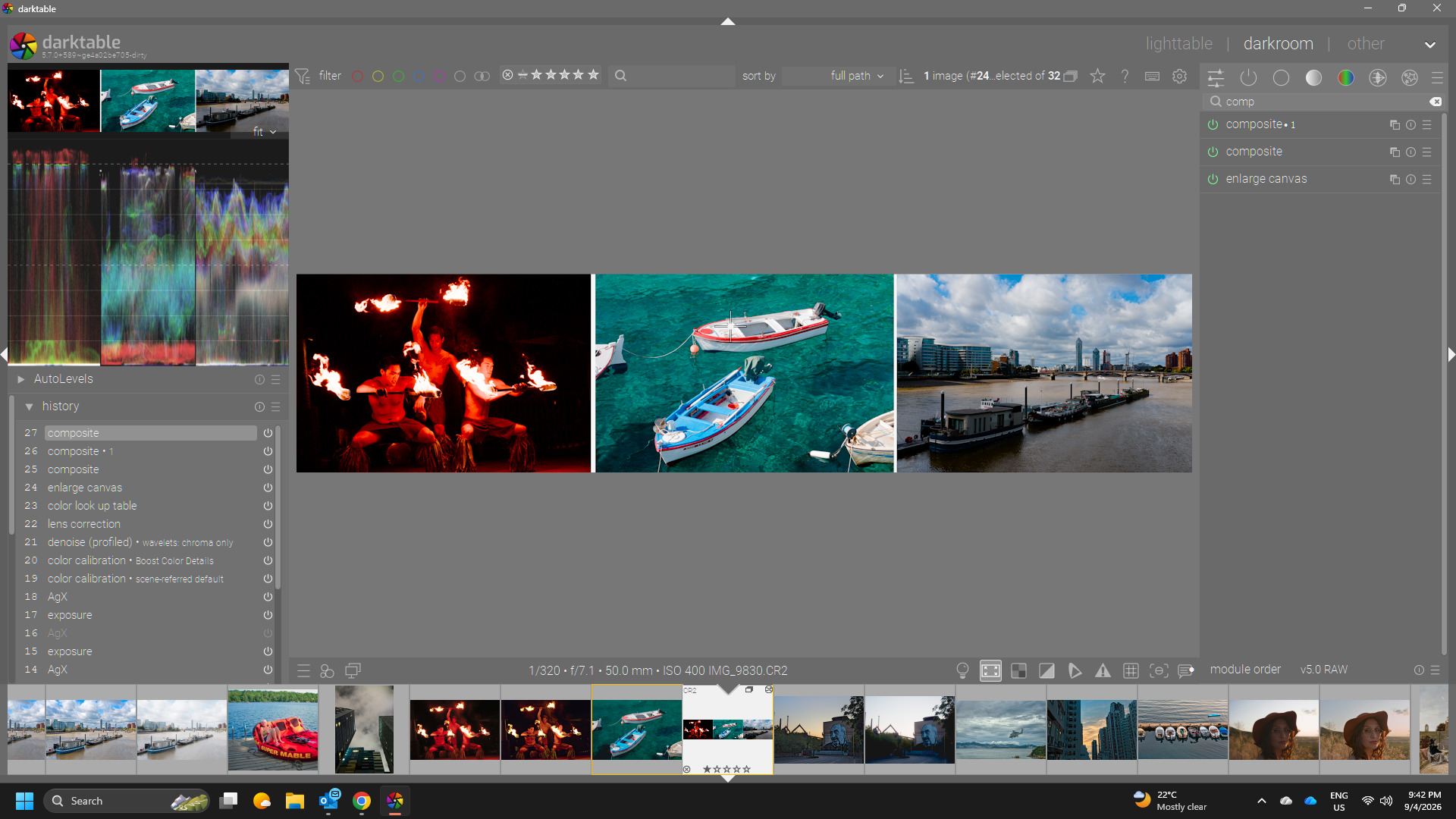

I don’t do that sort of thing but if you tried in DT I think it would be using the expand canvas and the compose features to get it together…I’m sure this came up in the past and someone shared an example…

[EspE1]

@priort

I’m sure this came up in the past and someone shared an example…

Take a look here:

What is your favorite new feature in darktable?

(Well, we might be highjacking Terry’s thread here, but these new canvas enlargement and overlay features clearly have the potential to become my favorite new dt feature. Perhaps split to have one thread cover these new features?) The new features obviously will alleviate one of my two needs for transferring images to Gimp: Retouch from something outside of an image. But reading the PR and the discussion I am still somewhat uncertain whether my other Gimp-need is also met, that of creating dip…

[JasonTheBirder (Jason Polak)]

I would use Inkscape because it’s faster and easier than the Gimp. Just create a new image, drag and drop the three images, make sure they’re the maximum size, enlarge canvas so you get a white border, align and distribute to make them even, etc.

[priort (Todd Prior)]

[snibgo (Alan Gibson)]

You could use ImageMagic:

magick imgA.tiff imgB.tiff imgC.tiff +append +repage out.tiff

That puts them side-by-side. To place them above each other, use “-append”.

You can put a coloured gutter between the images, a border around each input, a border around the output, and so on.

[Terry (Terry Pinfold)]

I would see this as one of the few times I would reach for GIMP or another pixel editor. But the suggestion by Todd Prior would work if you want to stick to DT.

[Thierry007]

Hello, G’MIC with the “Montage” option works very well.

[OhDear (Patrik Eschle)]

I do manual photo composing in LibreOffice Draw, automated composing with ImageMagick.

[Thierry007]

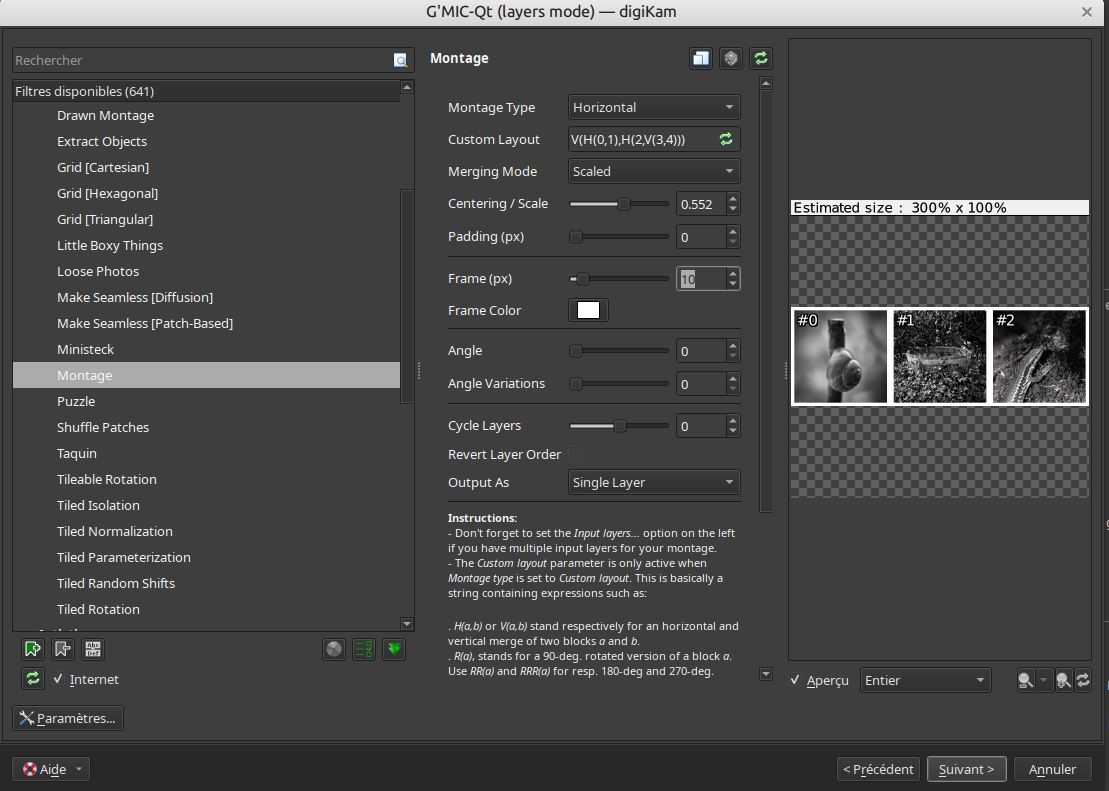

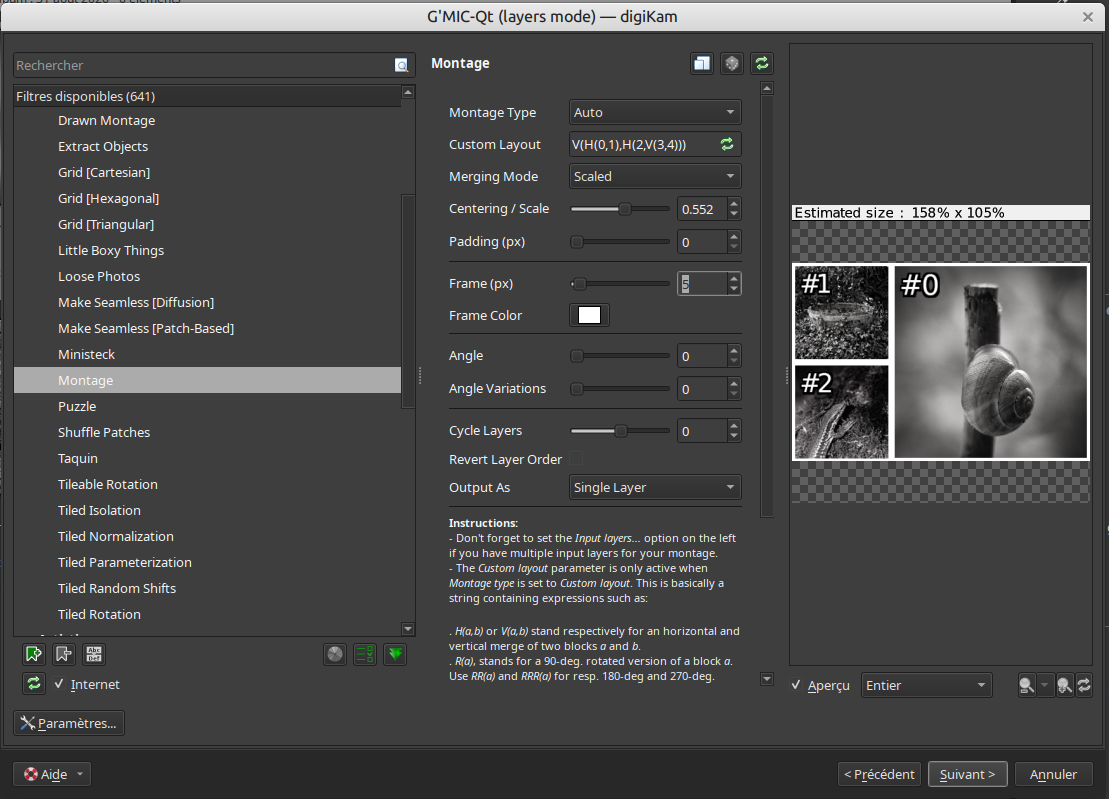

2 screenshots of the “Montage” module

[foto (Syv)]

Thank you, I didn’t think of it.

[foto (Syv)]

I tried last night and DT 5.6.1 crashes for me when I start playing with the enlarge canvas: top and bottom percentages.

$ kinfo
Operating System: Manjaro Linux
KDE Plasma Version: 6.7.4
KDE Frameworks Version: 6.29.0
Qt Version: 6.11.1
Kernel Version: 6.18.45-1-MANJARO (64-bit)
Graphics Platform: X11
Processors: 22 × Intel® Core™ Ultra 9 185H
Memory: 32 GiB of RAM (30.9 GiB usable)
Graphics Processor 1: NVIDIA GeForce RTX 4060 Laptop GPU/PCIe/SSE2
Graphics Processor 2: NVIDIA GeForce RTX 4060 Laptop GPU/PCIe/SSE2

and DT crashes with:

Sep 05 06:42:58 bogus kernel: worker res 1[17253]: segfault at 0 ip 0000000000000000 sp 00007ff8aa7d06d8 error 14 likely on CPU 12 (core 0, socket 0)
Sep 05 06:43:04 bogus kernel: worker res 1[16330]: segfault at 0 ip 0000000000000000 sp 00007ff8aa7d06d8 error 14 likely on CPU 1 (core 8, socket 0)

It’s not a one off. Every time, I try to adjust the top or bottom percentages of the enlarge canvas. The only difference is the cpu numbers, but always 2 cpus.

Thanks
