I’m using 1.4.0b4, I’m enthusiast of this piece of sw!
But I’ve a problem when I’m preprocessing a deepsky sequence: after Conversion and Calibration, I do Registration with Global Star Alignment method (single pass). If I’ve e.g. 22 frames, after the registration I end with only 21 frames, 1 is missing! I tested many sequences (with 4 up to 45 frames) and it seems to me a bug.
I’ve found a workaround, check 2ndpass, register with Global Star Alignment method, then register again with method Apply Existing Registration, so this keeps all 22 frames. But it is quite annoying to do so.
Can you check?
Regards,
Lorenzo
Will be fixed in next release, see here: Reference image no longer in frame list after registration - #2 by cissou8
2 Likes
In my experience, the registered reference frame is created but not included in the registered frames sequence. You may go to Convert tab and load every registered frame (i.e. included the missing one) and create a new sequence.
Workaround is to use 2-pass registration. See manual.
I revive this topic because I’ve found again this problem with version 1.4.4 and Manual Registration.
I’ve 13 frames that I load with Convert in a sequence.
I go directly to the Registration tab, Method “Apply Existing Registration”, open “Manual registration” below and set “X translation” and “Y translation” manually for each frame. I set frame #7 as reference frame. Then I click “Go register”.
At the end I get only 12 of 13 images in the sequence, and also on disk I’ve only 12 fits files. The missing image is #9 that is not the reference frame.
Can you give a workaround to get also this aligned image?
Regards,
Lorenzo

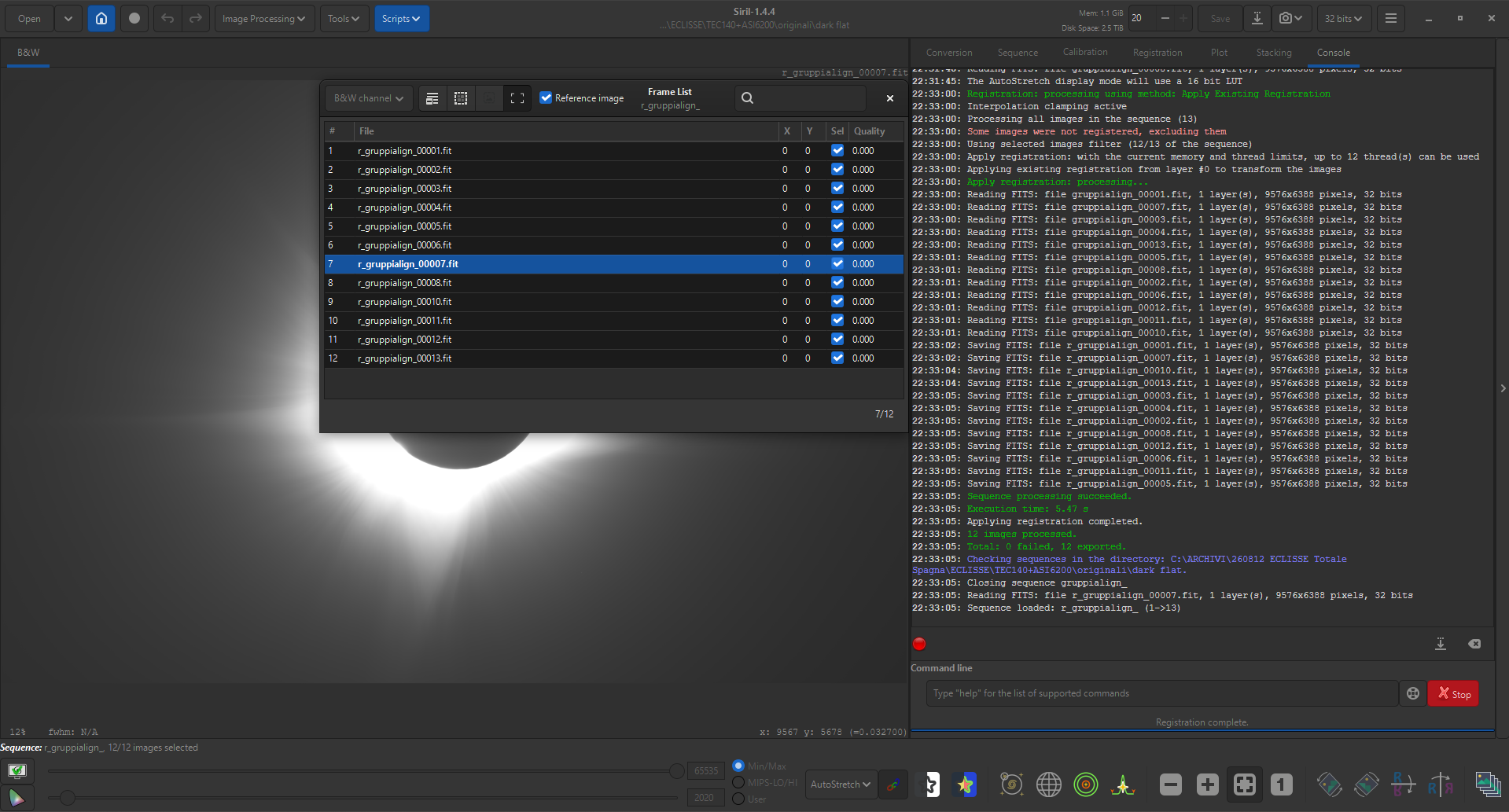

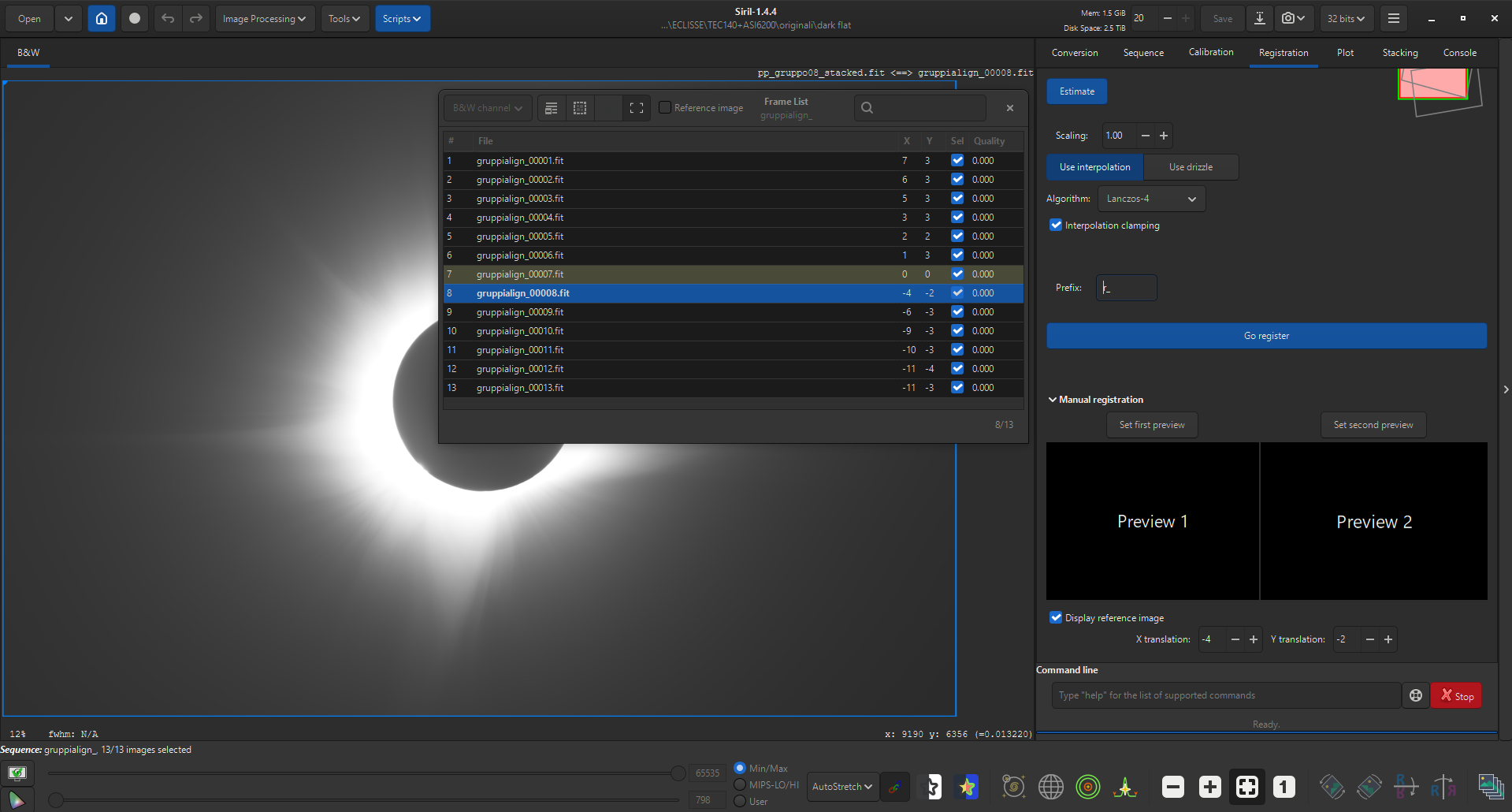

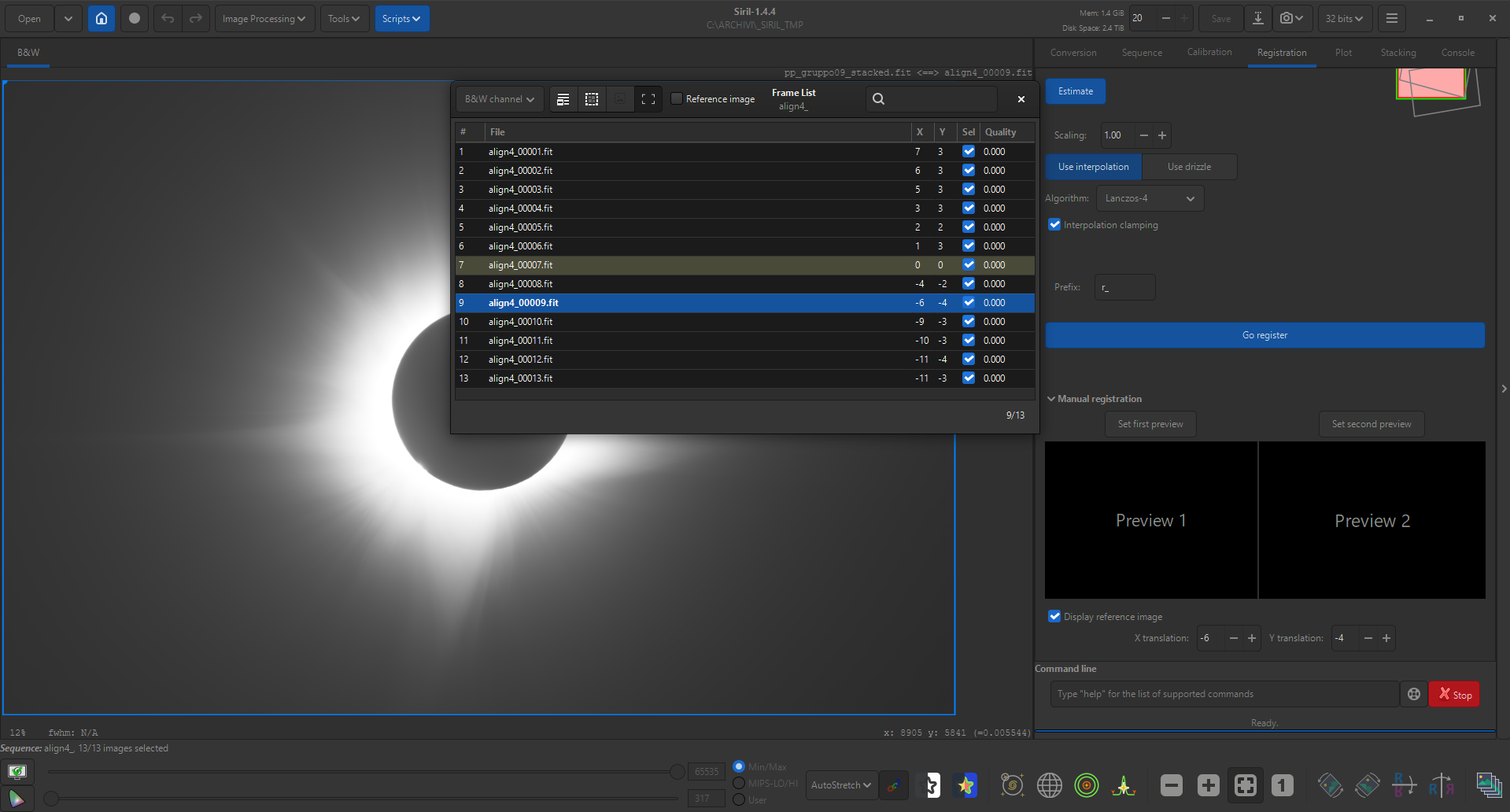

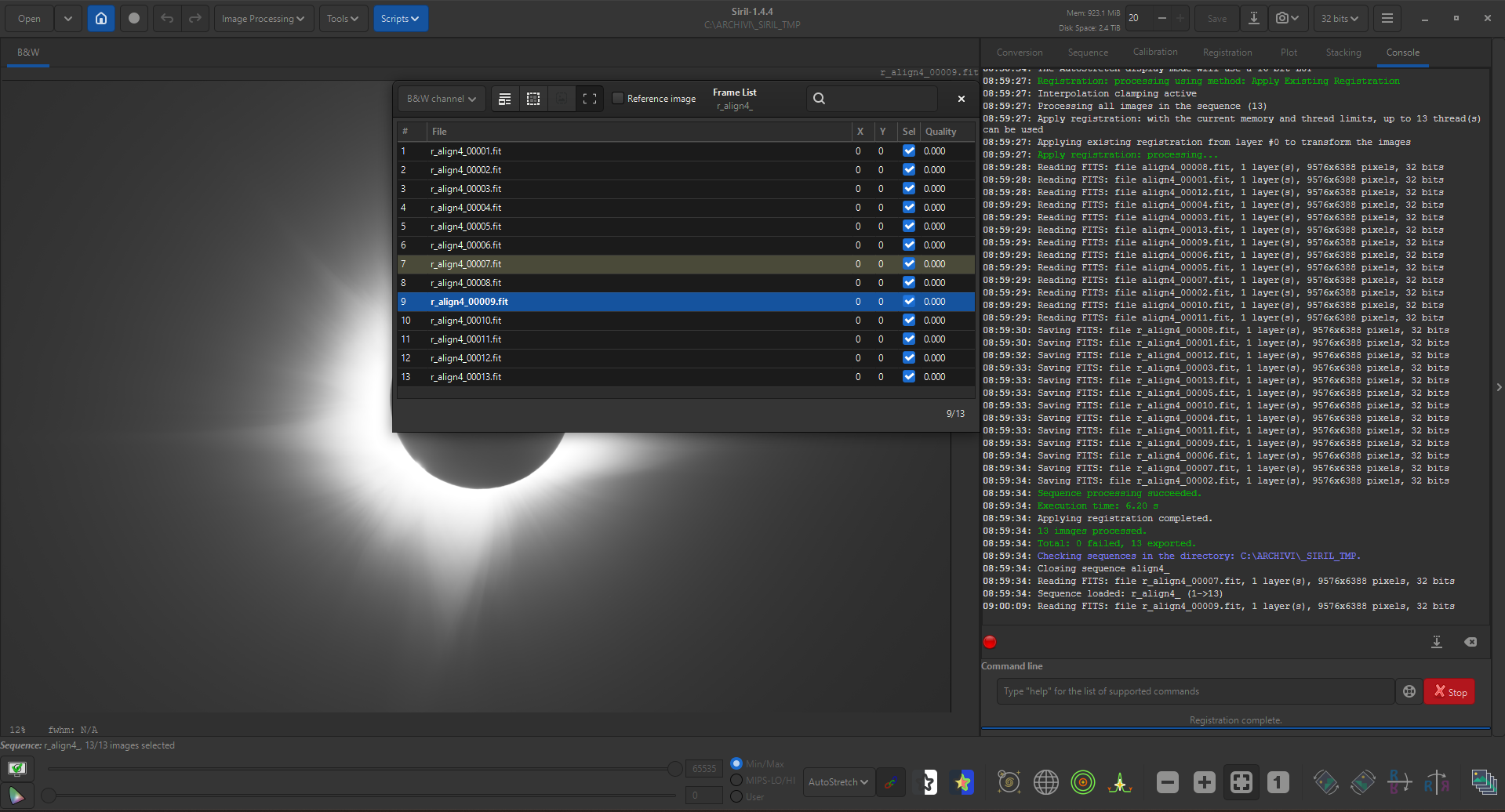

Screenshots before and after “Go register”
In the Console I get this messages (in bold one massage says it is excluding one image but no reason is reported and anyway at the end it says loading all 13 images…):
08:30:11: Registration: processing using method: Apply Existing Registration
08:30:11: Interpolation clamping active
08:30:11: Processing all images in the sequence (13)
**08:30:11: Some images were not registered, excluding them**
08:30:11: Using selected images filter (12/13 of the sequence)
08:30:11: Apply registration: with the current memory and thread limits, up to 12 thread(s) can be used
08:30:11: Applying existing registration from layer #0 to transform the images
08:30:11: Apply registration: processing...
08:30:12: Reading FITS: file gruppialign_00011.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00012.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00006.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00010.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00003.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00013.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00008.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00001.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00005.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00002.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00007.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:12: Reading FITS: file gruppialign_00004.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:13: Saving FITS: file r_gruppialign_00011.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:16: Saving FITS: file r_gruppialign_00002.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:16: Saving FITS: file r_gruppialign_00005.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:16: Saving FITS: file r_gruppialign_00010.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:16: Saving FITS: file r_gruppialign_00008.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00013.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00004.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00006.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00001.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00003.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00012.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Saving FITS: file r_gruppialign_00007.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Sequence processing succeeded.
08:30:17: Execution time: 5.68 s
08:30:17: Applying registration completed.
08:30:17: 12 images processed.
08:30:17: Total: 0 failed, 12 exported.
08:30:17: Checking sequences in the directory: C:\xxxxxxxxxx.
08:30:17: Closing sequence gruppialign_
08:30:17: Reading FITS: file r_gruppialign_00007.fit, 1 layer(s), 9576x6388 pixels, 32 bits
08:30:17: Sequence loaded: r_gruppialign_ (1->13)
