OpenCL optimization 4.3/4.4

Software darktable
1

The documentation has not changed for the new values or changes incorporated in recent master build. Also I am not able to understand how to set the opencl_device_priority values. The documentation writes about 4 values but darktable-cltest shows 5, i.e. image preview export thumbs preview2. In my case there are 2 plateforms

[opencl_init] OpenCL successfully initialized. Internal numbers and names of available devices:
[opencl_init]		0	'rusticl AMD Radeon RX 580 Series'
[opencl_init]		1	'Intel(R) OpenCL HD Graphics Intel(R) UHD Graphics 630 [0x3e92]'

can someone please write an in-depth guide as to how the values should be set?
What values to look for in the cltest output?
how darktable internally sets the values?
Are we suppose to change any values manually ?

There are many questions like this and the documentation is very brief and cryptic.

Following is my cltest output. I am experimenting with different values so the opencl_device_priority values may not be proper But I have observed that playing with different values many a times the thumbnails and/or histogram or even the main image will not show and in each time the last value would be * (like 1,* or 0,1,*) then why as a last resort DT is not using the CPU?
Please if someone can give better understanding.

darktable-cltest
     0.0737 [dt_get_sysresource_level] switched to 2 as `large'
     0.0737   total mem:       15836MB
     0.0737   mipmap cache:    1979MB
     0.0737   available mem:   10825MB
     0.0737   singlebuff:      247MB
     0.0737   OpenCL tune mem: WANTED
     0.0737   OpenCL pinned:   WANTED
[opencl_init] opencl related configuration options:
[opencl_init] opencl: ON
[opencl_init] opencl_scheduling_profile: 'default'
[opencl_init] opencl_library: 'default path'
[opencl_init] opencl_device_priority: '1,*/1,*/1,*/1,*/0,*'
[opencl_init] opencl_mandatory_timeout: 200
     0.0743 [dt_dlopencl_init] could not find default opencl runtime library 'libOpenCL'
     0.0744 [dt_dlopencl_init] could not find default opencl runtime library 'libOpenCL.so'
[opencl_init] opencl library 'libOpenCL.so.1' found on your system and loaded
[opencl_init] found 3 platforms
[opencl_init] found 3 devices

[dt_opencl_device_init]
   DEVICE:                   0: 'AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)'
   PLATFORM NAME & VENDOR:   rusticl, Mesa/X.org
   CANONICAL NAME:           rusticlamdradeonrx580series
   DRIVER VERSION:           23.1.1 - kisak-mesa PPA
   DEVICE VERSION:           OpenCL 3.0
   DEVICE_TYPE:              GPU
   GLOBAL MEM SIZE:          8192 MB
   MAX MEM ALLOC:            2048 MB
   MAX IMAGE SIZE:           16384 x 16384
   MAX WORK GROUP SIZE:      1024
   MAX WORK ITEM DIMENSIONS: 3
   MAX WORK ITEM SIZES:      [ 1024 1024 1024 ]
   ASYNC PIXELPIPE:          NO
   PINNED MEMORY TRANSFER:   WANTED
   MEMORY TUNING:            WANTED
   FORCED HEADROOM:          400
   AVOID ATOMICS:            NO
   MICRO NAP:                250
   ROUNDUP WIDTH:            16
   ROUNDUP HEIGHT:           16
   CHECK EVENT HANDLES:      128
   PERFORMANCE:              0.648
   TILING ADVANTAGE:         0.000
   DEFAULT DEVICE:           NO
   KERNEL BUILD DIRECTORY:   /usr/share/darktable/kernels
   KERNEL DIRECTORY:         /home/raj/.cache/darktable/cached_v1_kernels_for_rusticlAMDRadeonRX580Series_2311kisakmesaPPA
   CL COMPILER OPTION:       -cl-fast-relaxed-math
   KERNEL LOADING TIME:       0.4555 sec

[dt_opencl_device_init]
   DEVICE:                   1: 'Intel(R) UHD Graphics 630 [0x3e92]'
   PLATFORM NAME & VENDOR:   Intel(R) OpenCL HD Graphics, Intel(R) Corporation
   CANONICAL NAME:           intelropenclhdgraphicsintelruhdgraphics6300x3e92
   DRIVER VERSION:           22.43.24595
   DEVICE VERSION:           OpenCL 3.0 NEO
   DEVICE_TYPE:              GPU
   GLOBAL MEM SIZE:          12669 MB
   MAX MEM ALLOC:            4096 MB
   MAX IMAGE SIZE:           16384 x 16384
   MAX WORK GROUP SIZE:      256
   MAX WORK ITEM DIMENSIONS: 3
   MAX WORK ITEM SIZES:      [ 256 256 256 ]
   ASYNC PIXELPIPE:          NO
   PINNED MEMORY TRANSFER:   WANTED
   MEMORY TUNING:            WANTED
   FORCED HEADROOM:          400
   AVOID ATOMICS:            NO
   MICRO NAP:                250
   ROUNDUP WIDTH:            16
   ROUNDUP HEIGHT:           16
   CHECK EVENT HANDLES:      128
   PERFORMANCE:              1.209
   TILING ADVANTAGE:         0.000
   DEFAULT DEVICE:           NO
   KERNEL BUILD DIRECTORY:   /usr/share/darktable/kernels
   KERNEL DIRECTORY:         /home/raj/.cache/darktable/cached_v1_kernels_for_IntelROpenCLHDGraphicsIntelRUHDGraphics6300x3e92_224324595
   CL COMPILER OPTION:
   KERNEL LOADING TIME:       0.0076 sec

[dt_opencl_device_init]
   DEVICE:                   2: 'AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)'
   PLATFORM NAME & VENDOR:   Clover, Mesa
   CANONICAL NAME:           cloveramdradeonrx580series
   DRIVER VERSION:           23.1.1 - kisak-mesa PPA
   DEVICE VERSION:           OpenCL 1.1 Mesa 23.1.1 - kisak-mesa PPA
   DEVICE_TYPE:              GPU
   *** The OpenCL driver doesn't provide image support. See also 'clinfo' output ***
[opencl_init] OpenCL successfully initialized. Internal numbers and names of available devices:
[opencl_init]		0	'rusticl AMD Radeon RX 580 Series'
[opencl_init]		1	'Intel(R) OpenCL HD Graphics Intel(R) UHD Graphics 630 [0x3e92]'
[opencl_init] FINALLY: opencl is AVAILABLE and ENABLED.
[dt_opencl_update_priorities] these are your device priorities:
[dt_opencl_update_priorities] 		image	preview	export	thumbs	preview2
[dt_opencl_update_priorities]		1	1	1	1	0
[dt_opencl_update_priorities]		0	0	0	0	1
[dt_opencl_update_priorities] show if opencl use is mandatory for a given pixelpipe:
[dt_opencl_update_priorities] 		image	preview	export	thumbs	preview2
[dt_opencl_update_priorities]		0	0	0	0	0
[opencl_synchronization_timeout] synchronization timeout set to 200
[dt_opencl_update_priorities] these are your device priorities:
[dt_opencl_update_priorities] 		image	preview	export	thumbs	preview2
[dt_opencl_update_priorities]		1	1	1	1	0
[dt_opencl_update_priorities]		0	0	0	0	1
[dt_opencl_update_priorities] show if opencl use is mandatory for a given pixelpipe:
[dt_opencl_update_priorities] 		image	preview	export	thumbs	preview2
[dt_opencl_update_priorities]		0	0	0	0	0
[opencl_synchronization_timeout] synchronization timeout set to 200
2

The docs are mostly the work of one person, thus they are not updated for the master branch.

When you choose run master, you’re accepting that you may have to tinker without docs.

Have you tried looking through the github PRs for relevant merges?

3

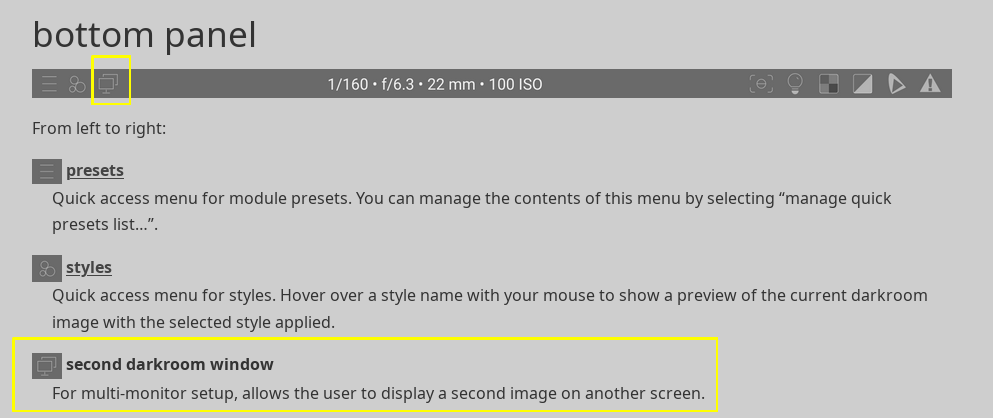

Preview2 is only relevant if you use a 2nd window for preview.

image993Ă—418 18.5 KB

Mine is set to

opencl_device_priority=+0/+0/+0/+0/+0

to run everything on the GPU.

darktable does fall back onto the CPU if the GPU does not complete the computation quickly enough. The timeout is defined by

opencl_mandatory_timeout=20000

That’s not the default value; I increased it so darktable does not fall back to the CPU too quickly (with large images, diffuse or sharpen can take time, but falling back to the CPU would mean much longer processing times):

time period (in units of 5ms) after which we give up try-locking an opencl device for mandatory use. defaults to 400 (2 seconds).

1 Like
4

In your priority setting you force darktable to prefer the intel on-cpu gpu over the dedicated gpu. Not the best idea if performance counts :wink:

to speed up processing you might use different priorities for full and preview pixel pipe especially when doing previews with reduced resolution

unfortunately to get best results you need to read and understand:

https://darktable-org.github.io/dtdocs/en/special-topics/opencl/

and
https://darktable-org.github.io/dtdocs/en/special-topics/mem-performance/

1 Like
5

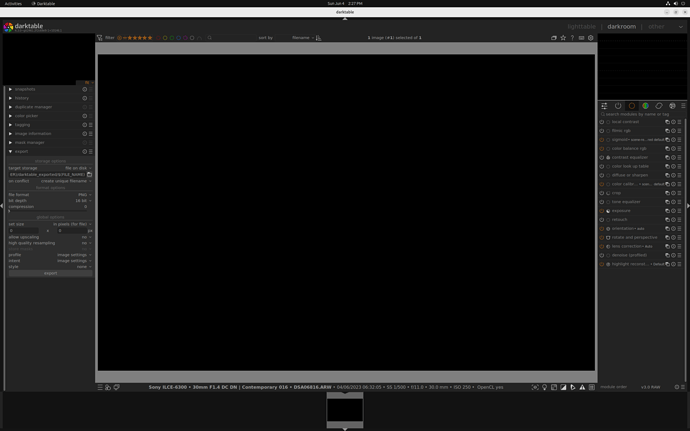

I tried it and there is no image shown even if I export there is a blank image

Screenshot from 2023-06-04 14-27-48
Screenshot from 2023-06-04 14-27-482560Ă—1600 204 KB

clinfo
Number of platforms                               3
  Platform Name                                   rusticl
  Platform Vendor                                 Mesa/X.org
  Platform Version                                OpenCL 3.0
  Platform Profile                                FULL_PROFILE
  Platform Extensions                             cl_khr_icd cl_khr_il_program
  Platform Extensions with Version                cl_khr_icd                                                       0x400000 (1.0.0)
                                                  cl_khr_il_program                                                0x400000 (1.0.0)
  Platform Numeric Version                        0xc00000 (3.0.0)
  Platform Extensions function suffix             MESA
  Platform Host timer resolution                  0ns

  Platform Name                                   Intel(R) OpenCL HD Graphics
  Platform Vendor                                 Intel(R) Corporation
  Platform Version                                OpenCL 3.0
  Platform Profile                                FULL_PROFILE
  Platform Extensions                             cl_khr_byte_addressable_store cl_khr_device_uuid cl_khr_fp16 cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_icd cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cl_intel_command_queue_families cl_intel_subgroups cl_intel_required_subgroup_size cl_intel_subgroups_short cl_khr_spir cl_intel_accelerator cl_intel_driver_diagnostics cl_khr_priority_hints cl_khr_throttle_hints cl_khr_create_command_queue cl_intel_subgroups_char cl_intel_subgroups_long cl_khr_il_program cl_intel_mem_force_host_memory cl_khr_subgroup_extended_types cl_khr_subgroup_non_uniform_vote cl_khr_subgroup_ballot cl_khr_subgroup_non_uniform_arithmetic cl_khr_subgroup_shuffle cl_khr_subgroup_shuffle_relative cl_khr_subgroup_clustered_reduce cl_intel_device_attribute_query cl_khr_suggested_local_work_size cl_intel_split_work_group_barrier cl_khr_fp64 cl_khr_subgroups cl_intel_spirv_device_side_avc_motion_estimation cl_intel_spirv_media_block_io cl_intel_spirv_subgroups cl_khr_spirv_no_integer_wrap_decoration cl_intel_unified_shared_memory cl_khr_mipmap_image cl_khr_mipmap_image_writes cl_intel_planar_yuv cl_intel_packed_yuv cl_intel_motion_estimation cl_intel_device_side_avc_motion_estimation cl_intel_advanced_motion_estimation cl_khr_int64_base_atomics cl_khr_int64_extended_atomics cl_khr_image2d_from_buffer cl_khr_depth_images cl_khr_3d_image_writes cl_intel_media_block_io cl_intel_va_api_media_sharing cl_intel_sharing_format_query cl_khr_pci_bus_info
  Platform Extensions with Version                cl_khr_byte_addressable_store                                    0x400000 (1.0.0)
                                                  cl_khr_device_uuid                                               0x400000 (1.0.0)
                                                  cl_khr_fp16                                                      0x400000 (1.0.0)
                                                  cl_khr_global_int32_base_atomics                                 0x400000 (1.0.0)
                                                  cl_khr_global_int32_extended_atomics                             0x400000 (1.0.0)
                                                  cl_khr_icd                                                       0x400000 (1.0.0)
                                                  cl_khr_local_int32_base_atomics                                  0x400000 (1.0.0)
                                                  cl_khr_local_int32_extended_atomics                              0x400000 (1.0.0)
                                                  cl_intel_command_queue_families                                  0x400000 (1.0.0)
                                                  cl_intel_subgroups                                               0x400000 (1.0.0)
                                                  cl_intel_required_subgroup_size                                  0x400000 (1.0.0)
                                                  cl_intel_subgroups_short                                         0x400000 (1.0.0)
                                                  cl_khr_spir                                                      0x400000 (1.0.0)
                                                  cl_intel_accelerator                                             0x400000 (1.0.0)
                                                  cl_intel_driver_diagnostics                                      0x400000 (1.0.0)
                                                  cl_khr_priority_hints                                            0x400000 (1.0.0)
                                                  cl_khr_throttle_hints                                            0x400000 (1.0.0)
                                                  cl_khr_create_command_queue                                      0x400000 (1.0.0)
                                                  cl_intel_subgroups_char                                          0x400000 (1.0.0)
                                                  cl_intel_subgroups_long                                          0x400000 (1.0.0)
                                                  cl_khr_il_program                                                0x400000 (1.0.0)
                                                  cl_intel_mem_force_host_memory                                   0x400000 (1.0.0)
                                                  cl_khr_subgroup_extended_types                                   0x400000 (1.0.0)
                                                  cl_khr_subgroup_non_uniform_vote                                 0x400000 (1.0.0)
                                                  cl_khr_subgroup_ballot                                           0x400000 (1.0.0)
                                                  cl_khr_subgroup_non_uniform_arithmetic                           0x400000 (1.0.0)
                                                  cl_khr_subgroup_shuffle                                          0x400000 (1.0.0)
                                                  cl_khr_subgroup_shuffle_relative                                 0x400000 (1.0.0)
                                                  cl_khr_subgroup_clustered_reduce                                 0x400000 (1.0.0)
                                                  cl_intel_device_attribute_query                                  0x400000 (1.0.0)
                                                  cl_khr_suggested_local_work_size                                 0x400000 (1.0.0)
                                                  cl_intel_split_work_group_barrier                                0x400000 (1.0.0)
                                                  cl_khr_fp64                                                      0x400000 (1.0.0)
                                                  cl_khr_subgroups                                                 0x400000 (1.0.0)
                                                  cl_intel_spirv_device_side_avc_motion_estimation                 0x400000 (1.0.0)
                                                  cl_intel_spirv_media_block_io                                    0x400000 (1.0.0)
                                                  cl_intel_spirv_subgroups                                         0x400000 (1.0.0)
                                                  cl_khr_spirv_no_integer_wrap_decoration                          0x400000 (1.0.0)
                                                  cl_intel_unified_shared_memory                                   0x400000 (1.0.0)
                                                  cl_khr_mipmap_image                                              0x400000 (1.0.0)
                                                  cl_khr_mipmap_image_writes                                       0x400000 (1.0.0)
                                                  cl_intel_planar_yuv                                              0x400000 (1.0.0)
                                                  cl_intel_packed_yuv                                              0x400000 (1.0.0)
                                                  cl_intel_motion_estimation                                       0x400000 (1.0.0)
                                                  cl_intel_device_side_avc_motion_estimation                       0x400000 (1.0.0)
                                                  cl_intel_advanced_motion_estimation                              0x400000 (1.0.0)
                                                  cl_khr_int64_base_atomics                                        0x400000 (1.0.0)
                                                  cl_khr_int64_extended_atomics                                    0x400000 (1.0.0)
                                                  cl_khr_image2d_from_buffer                                       0x400000 (1.0.0)
                                                  cl_khr_depth_images                                              0x400000 (1.0.0)
                                                  cl_khr_3d_image_writes                                           0x400000 (1.0.0)
                                                  cl_intel_media_block_io                                          0x400000 (1.0.0)
                                                  cl_intel_va_api_media_sharing                                    0x400000 (1.0.0)
                                                  cl_intel_sharing_format_query                                    0x400000 (1.0.0)
                                                  cl_khr_pci_bus_info                                              0x400000 (1.0.0)
  Platform Numeric Version                        0xc00000 (3.0.0)
  Platform Extensions function suffix             INTEL
  Platform Host timer resolution                  1ns

  Platform Name                                   Clover
  Platform Vendor                                 Mesa
  Platform Version                                OpenCL 1.1 Mesa 23.1.1 - kisak-mesa PPA
  Platform Profile                                FULL_PROFILE
  Platform Extensions                             cl_khr_icd
  Platform Extensions function suffix             MESA

  Platform Name                                   rusticl
Number of devices                                 1
  Device Name                                     AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)
  Device Vendor                                   AMD
  Device Vendor ID                                0x1002
  Device Version                                  OpenCL 3.0
  Device Numeric Version                          0xc00000 (3.0.0)
  Driver Version                                  23.1.1 - kisak-mesa PPA
  Device OpenCL C Version                         OpenCL C 1.2
  Device OpenCL C all versions                    OpenCL C                                                         0xc00000 (3.0.0)
                                                  OpenCL C                                                         0x402000 (1.2.0)
                                                  OpenCL C                                                         0x401000 (1.1.0)
                                                  OpenCL C                                                         0x400000 (1.0.0)
  Device OpenCL C features                        __opencl_c_int64                                                 0x400000 (1.0.0)
                                                  __opencl_c_images                                                0x400000 (1.0.0)
                                                  __opencl_c_3d_image_writes                                       0x400000 (1.0.0)
  Latest conformance test passed                  v0000-01-01-00
  Device Type                                     GPU
  Device Profile                                  EMBEDDED_PROFILE
  Device Available                                Yes
  Compiler Available                              Yes
  Linker Available                                Yes
  Max compute units                               36
  Max clock frequency                             1411MHz
  Device Partition                                (core)
    Max number of sub-devices                     0
    Supported partition types                     None
    Supported affinity domains                    (n/a)
  Max work item dimensions                        3
  Max work item sizes                             1024x1024x1024
  Max work group size                             1024
  Preferred work group size multiple (device)     64
  Preferred work group size multiple (kernel)     64
  Max sub-groups per work group                   0
  Preferred / native vector sizes
    char                                                 1 / 1
    short                                                1 / 1
    int                                                  1 / 1
    long                                                 1 / 1
    half                                                 0 / 0        (n/a)
    float                                                1 / 1
    double                                               0 / 0        (n/a)
  Half-precision Floating-point support           (n/a)
  Single-precision Floating-point support         (core)
    Denormals                                     No
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 No
    Round to infinity                             No
    IEEE754-2008 fused multiply-add               No
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  No
  Double-precision Floating-point support         (n/a)
  Address bits                                    64, Little-Endian
  Global memory size                              8589934592 (8GiB)
  Error Correction support                        No
  Max memory allocation                           2147483648 (2GiB)
  Unified memory for Host and Device              No
  Shared Virtual Memory (SVM) capabilities        (core)
    Coarse-grained buffer sharing                 No
    Fine-grained buffer sharing                   No
    Fine-grained system sharing                   No
    Atomics                                       No
  Minimum alignment for any data type             128 bytes
  Alignment of base address                       4096 bits (512 bytes)
  Preferred alignment for atomics
    SVM                                           0 bytes
    Global                                        0 bytes
    Local                                         0 bytes
  Atomic memory capabilities                      relaxed, work-group scope
  Atomic fence capabilities                       relaxed, acquire/release, work-group scope
  Max size for global variable                    0
  Preferred total size of global vars             0
  Global Memory cache type                        None
  Image support                                   Yes
    Max number of samplers per kernel             32
    Max size for 1D images from buffer            268435455 pixels
    Max 1D or 2D image array size                 2048 images
    Base address alignment for 2D image buffers   0 bytes
    Pitch alignment for 2D image buffers          0 pixels
    Max 2D image size                             16384x16384 pixels
    Max 3D image size                             2048x2048x2048 pixels
    Max number of read image args                 32
    Max number of write image args                16
    Max number of read/write image args           0
  Pipe support                                    No
  Max number of pipe args                         0
  Max active pipe reservations                    0
  Max pipe packet size                            0
  Local memory type                               Global
  Local memory size                               65536 (64KiB)
  Max number of constant args                     16
  Max constant buffer size                        2147483648 (2GiB)
  Generic address space support                   No
  Max size of kernel argument                     67108864 (64MiB)
  Queue properties (on host)
    Out-of-order execution                        No
    Profiling                                     Yes
  Device enqueue capabilities                     (n/a)
  Queue properties (on device)
    Out-of-order execution                        No
    Profiling                                     No
    Preferred size                                0
    Max size                                      0
  Max queues on device                            0
  Max events on device                            0
  Prefer user sync for interop                    Yes
  Profiling timer resolution                      0ns
  Execution capabilities
    Run OpenCL kernels                            Yes
    Run native kernels                            No
    Non-uniform work-groups                       No
    Work-group collective functions               No
    Sub-group independent forward progress        No
    IL version                                    SPIR-V_1.0 SPIR-V_1.1 SPIR-V_1.2 SPIR-V_1.3 SPIR-V_1.4
    ILs with version                              SPIR-V                                                           0x400000 (1.0.0)
                                                  SPIR-V                                                           0x401000 (1.1.0)
                                                  SPIR-V                                                           0x402000 (1.2.0)
                                                  SPIR-V                                                           0x403000 (1.3.0)
                                                  SPIR-V                                                           0x404000 (1.4.0)
  printf() buffer size                            1048576 (1024KiB)
  Built-in kernels                                (n/a)
  Built-in kernels with version                   (n/a)
  Device Extensions                               cl_khr_byte_addressable_store cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_il_program cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cles_khr_int64 cl_khr_3d_image_writes
  Device Extensions with Version                  cl_khr_byte_addressable_store                                    0x400000 (1.0.0)
                                                  cl_khr_global_int32_base_atomics                                 0x400000 (1.0.0)
                                                  cl_khr_global_int32_extended_atomics                             0x400000 (1.0.0)
                                                  cl_khr_il_program                                                0x400000 (1.0.0)
                                                  cl_khr_local_int32_base_atomics                                  0x400000 (1.0.0)
                                                  cl_khr_local_int32_extended_atomics                              0x400000 (1.0.0)
                                                  cles_khr_int64                                                   0x400000 (1.0.0)
                                                  cl_khr_3d_image_writes                                           0x400000 (1.0.0)

  Platform Name                                   Intel(R) OpenCL HD Graphics
Number of devices                                 1
  Device Name                                     Intel(R) UHD Graphics 630 [0x3e92]
  Device Vendor                                   Intel(R) Corporation
  Device Vendor ID                                0x8086
  Device Version                                  OpenCL 3.0 NEO
  Device UUID                                     86800000-923e-0000-0000-000000000000
  Driver UUID                                     32322e34-332e-3234-3539-350000000000
  Valid Device LUID                               No
  Device LUID                                     c0fb-60b9fc7f0000
  Device Node Mask                                0
  Device Numeric Version                          0xc00000 (3.0.0)
  Driver Version                                  22.43.24595
  Device OpenCL C Version                         OpenCL C 1.2
  Device OpenCL C all versions                    OpenCL C                                                         0x400000 (1.0.0)
                                                  OpenCL C                                                         0x401000 (1.1.0)
                                                  OpenCL C                                                         0x402000 (1.2.0)
                                                  OpenCL C                                                         0xc00000 (3.0.0)
  Device OpenCL C features                        __opencl_c_int64                                                 0xc00000 (3.0.0)
                                                  __opencl_c_3d_image_writes                                       0xc00000 (3.0.0)
                                                  __opencl_c_images                                                0xc00000 (3.0.0)
                                                  __opencl_c_read_write_images                                     0xc00000 (3.0.0)
                                                  __opencl_c_atomic_order_acq_rel                                  0xc00000 (3.0.0)
                                                  __opencl_c_atomic_order_seq_cst                                  0xc00000 (3.0.0)
                                                  __opencl_c_atomic_scope_all_devices                              0xc00000 (3.0.0)
                                                  __opencl_c_atomic_scope_device                                   0xc00000 (3.0.0)
                                                  __opencl_c_generic_address_space                                 0xc00000 (3.0.0)
                                                  __opencl_c_program_scope_global_variables                        0xc00000 (3.0.0)
                                                  __opencl_c_work_group_collective_functions                       0xc00000 (3.0.0)
                                                  __opencl_c_subgroups                                             0xc00000 (3.0.0)
                                                  __opencl_c_pipes                                                 0xc00000 (3.0.0)
                                                  __opencl_c_fp64                                                  0xc00000 (3.0.0)
  Latest conformance test passed                  v2022-04-22-00
  Device Type                                     GPU
  Device PCI bus info (KHR)                       PCI-E, 0000:00:02.0
  Device Profile                                  FULL_PROFILE
  Device Available                                Yes
  Compiler Available                              Yes
  Linker Available                                Yes
  Max compute units                               24
  Max clock frequency                             1200MHz
  Device IP (Intel)                               0x90000 (0.144.0)
  Device ID (Intel)                               16018
  Slices (Intel)                                  1
  Sub-slices per slice (Intel)                    3
  EUs per sub-slice (Intel)                       8
  Threads per EU (Intel)                          7
  Feature capabilities (Intel)                    (n/a)
  Device Partition                                (core)
    Max number of sub-devices                     0
    Supported partition types                     None
    Supported affinity domains                    (n/a)
  Max work item dimensions                        3
  Max work item sizes                             256x256x256
  Max work group size                             256
  Preferred work group size multiple (device)     32
  Preferred work group size multiple (kernel)     32
  Max sub-groups per work group                   32
  Sub-group sizes (Intel)                         8, 16, 32
  Preferred / native vector sizes
    char                                                16 / 16
    short                                                8 / 8
    int                                                  4 / 4
    long                                                 1 / 1
    half                                                 8 / 8        (cl_khr_fp16)
    float                                                1 / 1
    double                                               1 / 1        (cl_khr_fp64)
  Half-precision Floating-point support           (cl_khr_fp16)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
  Single-precision Floating-point support         (core)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  Yes
  Double-precision Floating-point support         (cl_khr_fp64)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
  Address bits                                    64, Little-Endian
  Global memory size                              13284413440 (12.37GiB)
  Error Correction support                        No
  Max memory allocation                           4294959104 (4GiB)
  Unified memory for Host and Device              Yes
  Shared Virtual Memory (SVM) capabilities        (core)
    Coarse-grained buffer sharing                 Yes
    Fine-grained buffer sharing                   No
    Fine-grained system sharing                   No
    Atomics                                       No
  Unified Shared Memory (USM)                     (cl_intel_unified_shared_memory)
  Host USM capabilities (Intel)                   USM access, USM atomic access
  Device USM capabilities (Intel)                 USM access, USM atomic access
  Single-Device USM caps (Intel)                  USM access, USM atomic access
  Cross-Device USM caps (Intel)                   (n/a)
  Shared System USM caps (Intel)                  (n/a)
  Minimum alignment for any data type             128 bytes
  Alignment of base address                       1024 bits (128 bytes)
  Preferred alignment for atomics
    SVM                                           64 bytes
    Global                                        64 bytes
    Local                                         64 bytes
  Atomic memory capabilities                      relaxed, acquire/release, sequentially-consistent, work-group scope, device scope, all-devices scope
  Atomic fence capabilities                       relaxed, acquire/release, sequentially-consistent, work-item scope, work-group scope, device scope, all-devices scope
  Max size for global variable                    65536 (64KiB)
  Preferred total size of global vars             4294959104 (4GiB)
  Global Memory cache type                        Read/Write
  Global Memory cache size                        786432 (768KiB)
  Global Memory cache line size                   64 bytes
  Image support                                   Yes
    Max number of samplers per kernel             16
    Max size for 1D images from buffer            268434944 pixels
    Max 1D or 2D image array size                 2048 images
    Base address alignment for 2D image buffers   4 bytes
    Pitch alignment for 2D image buffers          4 pixels
    Max 2D image size                             16384x16384 pixels
    Max planar YUV image size                     16384x16352 pixels
    Max 3D image size                             16384x16384x2048 pixels
    Max number of read image args                 128
    Max number of write image args                128
    Max number of read/write image args           128
  Pipe support                                    Yes
  Max number of pipe args                         16
  Max active pipe reservations                    1
  Max pipe packet size                            1024
  Local memory type                               Local
  Local memory size                               65536 (64KiB)
  Max number of constant args                     8
  Max constant buffer size                        4294959104 (4GiB)
  Generic address space support                   Yes
  Max size of kernel argument                     2048 (2KiB)
  Queue properties (on host)
    Out-of-order execution                        Yes
    Profiling                                     Yes
  Device enqueue capabilities                     (n/a)
  Queue properties (on device)
    Out-of-order execution                        No
    Profiling                                     No
    Preferred size                                0
    Max size                                      0
  Max queues on device                            0
  Max events on device                            0
  Device queue families                           rcs                                                              (1)
                                                                                                 Queue properties  Out-of-order execution, Profiling
                                                                                                     Capabilities  create single-queue events, create cross-queue events
  Prefer user sync for interop                    Yes
  Profiling timer resolution                      83ns
  Execution capabilities
    Run OpenCL kernels                            Yes
    Run native kernels                            No
    Non-uniform work-groups                       Yes
    Work-group collective functions               Yes
    Sub-group independent forward progress        Yes
    IL version                                    SPIR-V_1.2
    ILs with version                              SPIR-V                                                           0x402000 (1.2.0)
    SPIR versions                                 1.2
  printf() buffer size                            4194304 (4MiB)
  Built-in kernels                                block_motion_estimate_intel;block_advanced_motion_estimate_check_intel;block_advanced_motion_estimate_bidirectional_check_intel;
  Built-in kernels with version                   block_motion_estimate_intel                                      0x400000 (1.0.0)
                                                  block_advanced_motion_estimate_check_intel                       0x400000 (1.0.0)
                                                  block_advanced_motion_estimate_bidirectional_check_intel         0x400000 (1.0.0)
  Motion Estimation accelerator version (Intel)   2
    Device-side AVC Motion Estimation version     1
      Supports texture sampler use                Yes
      Supports preemption                         No
  Device Extensions                               cl_khr_byte_addressable_store cl_khr_device_uuid cl_khr_fp16 cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_icd cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cl_intel_command_queue_families cl_intel_subgroups cl_intel_required_subgroup_size cl_intel_subgroups_short cl_khr_spir cl_intel_accelerator cl_intel_driver_diagnostics cl_khr_priority_hints cl_khr_throttle_hints cl_khr_create_command_queue cl_intel_subgroups_char cl_intel_subgroups_long cl_khr_il_program cl_intel_mem_force_host_memory cl_khr_subgroup_extended_types cl_khr_subgroup_non_uniform_vote cl_khr_subgroup_ballot cl_khr_subgroup_non_uniform_arithmetic cl_khr_subgroup_shuffle cl_khr_subgroup_shuffle_relative cl_khr_subgroup_clustered_reduce cl_intel_device_attribute_query cl_khr_suggested_local_work_size cl_intel_split_work_group_barrier cl_khr_fp64 cl_khr_subgroups cl_intel_spirv_device_side_avc_motion_estimation cl_intel_spirv_media_block_io cl_intel_spirv_subgroups cl_khr_spirv_no_integer_wrap_decoration cl_intel_unified_shared_memory cl_khr_mipmap_image cl_khr_mipmap_image_writes cl_intel_planar_yuv cl_intel_packed_yuv cl_intel_motion_estimation cl_intel_device_side_avc_motion_estimation cl_intel_advanced_motion_estimation cl_khr_int64_base_atomics cl_khr_int64_extended_atomics cl_khr_image2d_from_buffer cl_khr_depth_images cl_khr_3d_image_writes cl_intel_media_block_io cl_intel_va_api_media_sharing cl_intel_sharing_format_query cl_khr_pci_bus_info
  Device Extensions with Version                  cl_khr_byte_addressable_store                                    0x400000 (1.0.0)
                                                  cl_khr_device_uuid                                               0x400000 (1.0.0)
                                                  cl_khr_fp16                                                      0x400000 (1.0.0)
                                                  cl_khr_global_int32_base_atomics                                 0x400000 (1.0.0)
                                                  cl_khr_global_int32_extended_atomics                             0x400000 (1.0.0)
                                                  cl_khr_icd                                                       0x400000 (1.0.0)
                                                  cl_khr_local_int32_base_atomics                                  0x400000 (1.0.0)
                                                  cl_khr_local_int32_extended_atomics                              0x400000 (1.0.0)
                                                  cl_intel_command_queue_families                                  0x400000 (1.0.0)
                                                  cl_intel_subgroups                                               0x400000 (1.0.0)
                                                  cl_intel_required_subgroup_size                                  0x400000 (1.0.0)
                                                  cl_intel_subgroups_short                                         0x400000 (1.0.0)
                                                  cl_khr_spir                                                      0x400000 (1.0.0)
                                                  cl_intel_accelerator                                             0x400000 (1.0.0)
                                                  cl_intel_driver_diagnostics                                      0x400000 (1.0.0)
                                                  cl_khr_priority_hints                                            0x400000 (1.0.0)
                                                  cl_khr_throttle_hints                                            0x400000 (1.0.0)
                                                  cl_khr_create_command_queue                                      0x400000 (1.0.0)
                                                  cl_intel_subgroups_char                                          0x400000 (1.0.0)
                                                  cl_intel_subgroups_long                                          0x400000 (1.0.0)
                                                  cl_khr_il_program                                                0x400000 (1.0.0)
                                                  cl_intel_mem_force_host_memory                                   0x400000 (1.0.0)
                                                  cl_khr_subgroup_extended_types                                   0x400000 (1.0.0)
                                                  cl_khr_subgroup_non_uniform_vote                                 0x400000 (1.0.0)
                                                  cl_khr_subgroup_ballot                                           0x400000 (1.0.0)
                                                  cl_khr_subgroup_non_uniform_arithmetic                           0x400000 (1.0.0)
                                                  cl_khr_subgroup_shuffle                                          0x400000 (1.0.0)
                                                  cl_khr_subgroup_shuffle_relative                                 0x400000 (1.0.0)
                                                  cl_khr_subgroup_clustered_reduce                                 0x400000 (1.0.0)
                                                  cl_intel_device_attribute_query                                  0x400000 (1.0.0)
                                                  cl_khr_suggested_local_work_size                                 0x400000 (1.0.0)
                                                  cl_intel_split_work_group_barrier                                0x400000 (1.0.0)
                                                  cl_khr_fp64                                                      0x400000 (1.0.0)
                                                  cl_khr_subgroups                                                 0x400000 (1.0.0)
                                                  cl_intel_spirv_device_side_avc_motion_estimation                 0x400000 (1.0.0)
                                                  cl_intel_spirv_media_block_io                                    0x400000 (1.0.0)
                                                  cl_intel_spirv_subgroups                                         0x400000 (1.0.0)
                                                  cl_khr_spirv_no_integer_wrap_decoration                          0x400000 (1.0.0)
                                                  cl_intel_unified_shared_memory                                   0x400000 (1.0.0)
                                                  cl_khr_mipmap_image                                              0x400000 (1.0.0)
                                                  cl_khr_mipmap_image_writes                                       0x400000 (1.0.0)
                                                  cl_intel_planar_yuv                                              0x400000 (1.0.0)
                                                  cl_intel_packed_yuv                                              0x400000 (1.0.0)
                                                  cl_intel_motion_estimation                                       0x400000 (1.0.0)
                                                  cl_intel_device_side_avc_motion_estimation                       0x400000 (1.0.0)
                                                  cl_intel_advanced_motion_estimation                              0x400000 (1.0.0)
                                                  cl_khr_int64_base_atomics                                        0x400000 (1.0.0)
                                                  cl_khr_int64_extended_atomics                                    0x400000 (1.0.0)
                                                  cl_khr_image2d_from_buffer                                       0x400000 (1.0.0)
                                                  cl_khr_depth_images                                              0x400000 (1.0.0)
                                                  cl_khr_3d_image_writes                                           0x400000 (1.0.0)
                                                  cl_intel_media_block_io                                          0x400000 (1.0.0)
                                                  cl_intel_va_api_media_sharing                                    0x400000 (1.0.0)
                                                  cl_intel_sharing_format_query                                    0x400000 (1.0.0)
                                                  cl_khr_pci_bus_info                                              0x400000 (1.0.0)

  Platform Name                                   Clover
Number of devices                                 1
  Device Name                                     AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)
  Device Vendor                                   AMD
  Device Vendor ID                                0x1002
  Device Version                                  OpenCL 1.1 Mesa 23.1.1 - kisak-mesa PPA
  Device Numeric Version                          0x401000 (1.1.0)
  Driver Version                                  23.1.1 - kisak-mesa PPA
  Device OpenCL C Version                         OpenCL C 1.1
  Device OpenCL C Numeric Version                 0x401000 (1.1.0)
  Device Type                                     GPU
  Device Profile                                  FULL_PROFILE
  Device Available                                Yes
  Compiler Available                              Yes
  Max compute units                               36
  Max clock frequency                             1411MHz
  Max work item dimensions                        3
  Max work item sizes                             256x256x256
  Max work group size                             256
  Preferred work group size multiple (kernel)     64
  Preferred / native vector sizes
    char                                                16 / 16
    short                                                8 / 8
    int                                                  4 / 4
    long                                                 2 / 2
    half                                                 0 / 0        (n/a)
    float                                                4 / 4
    double                                               2 / 2        (cl_khr_fp64)
  Half-precision Floating-point support           (n/a)
  Single-precision Floating-point support         (core)
    Denormals                                     No
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 No
    Round to infinity                             No
    IEEE754-2008 fused multiply-add               No
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  No
  Double-precision Floating-point support         (cl_khr_fp64)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
  Address bits                                    64, Little-Endian
  Global memory size                              8589934592 (8GiB)
  Error Correction support                        No
  Max memory allocation                           2147483648 (2GiB)
  Unified memory for Host and Device              No
  Minimum alignment for any data type             128 bytes
  Alignment of base address                       32768 bits (4096 bytes)
  Global Memory cache type                        None
  Image support                                   No
  Local memory type                               Local
  Local memory size                               65536 (64KiB)
  Max number of constant args                     16
  Max constant buffer size                        67108864 (64MiB)
  Max size of kernel argument                     1024
  Queue properties
    Out-of-order execution                        No
    Profiling                                     Yes
  Profiling timer resolution                      0ns
  Execution capabilities
    Run OpenCL kernels                            Yes
    Run native kernels                            No
    ILs with version                              SPIR-V                                                           0x400000 (1.0.0)
  Built-in kernels with version                   (n/a)
  Device Extensions                               cl_khr_byte_addressable_store cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cl_khr_int64_base_atomics cl_khr_int64_extended_atomics cl_khr_fp64 cl_khr_extended_versioning
  Device Extensions with Version                  cl_khr_byte_addressable_store                                    0x400000 (1.0.0)
                                                  cl_khr_global_int32_base_atomics                                 0x400000 (1.0.0)
                                                  cl_khr_global_int32_extended_atomics                             0x400000 (1.0.0)
                                                  cl_khr_local_int32_base_atomics                                  0x400000 (1.0.0)
                                                  cl_khr_local_int32_extended_atomics                              0x400000 (1.0.0)
                                                  cl_khr_int64_base_atomics                                        0x400000 (1.0.0)
                                                  cl_khr_int64_extended_atomics                                    0x400000 (1.0.0)
                                                  cl_khr_fp64                                                      0x400000 (1.0.0)
                                                  cl_khr_extended_versioning                                       0x400000 (1.0.0)

NULL platform behavior
  clGetPlatformInfo(NULL, CL_PLATFORM_NAME, ...)  rusticl
  clGetDeviceIDs(NULL, CL_DEVICE_TYPE_ALL, ...)   Success [MESA]
  clCreateContext(NULL, ...) [default]            Success [MESA]
  clCreateContext(NULL, ...) [other]              Success [INTEL]
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_DEFAULT)  Success (1)
    Platform Name                                 rusticl
    Device Name                                   AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_CPU)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_GPU)  Success (1)
    Platform Name                                 rusticl
    Device Name                                   AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_ACCELERATOR)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_CUSTOM)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_ALL)  Success (1)
    Platform Name                                 rusticl
    Device Name                                   AMD Radeon RX 580 Series (polaris10, LLVM 15.0.7, DRM 3.49, 6.2.0-20-generic)

ICD loader properties
  ICD loader Name                                 OpenCL ICD Loader
  ICD loader Vendor                               OCL Icd free software
  ICD loader Version                              2.3.1
  ICD loader Profile                              OpenCL 3.0
6

I changed to this opencl_mandatory_timeout=20000
before it was 200

When my device priority was to use only Intel GPU everything was working (slow) but there was an Image.
darktablerc.zip (9.0 KB)

7

Already explained here: No OpenCL though Installed and used by Geekbench6 - #10 by sgotti

TLDR your rusticl version doesn’t work, wait for the next mesa release. By default mesa disables rusticl for radeonsi, you should have enabled it manually using the related environment variable or the package you used changed this default.

8

Yes I added the environment variable to radeonsi. Will wait for next release of MESA driver :weary:

9

I am waiting for working rustical drivers, too. I have already installed version 23.1.1 but cltest gives only:

[dt_opencl_device_init]
   DEVICE:                   0: 'AMD Radeon Graphics (renoir, LLVM 15.0.7, DRM 3.49, 6.1.0-1013-oem)'
   PLATFORM NAME & VENDOR:   rusticl, Mesa/X.org
   CANONICAL NAME:           rusticlamdradeongraphics
   DRIVER VERSION:           23.1.1 (git-f63bcc8ad2)
   DEVICE VERSION:           OpenCL 3.0
   DEVICE_TYPE:              GPU
   GLOBAL MEM SIZE:          15724 MB
   MAX MEM ALLOC:            2048 MB
   MAX IMAGE SIZE:           16384 x 16384
   MAX WORK GROUP SIZE:      1024
   MAX WORK ITEM DIMENSIONS: 3
   MAX WORK ITEM SIZES:      [ 1024 1024 1024 ]
   ASYNC PIXELPIPE:          NO
   PINNED MEMORY TRANSFER:   NO
   MEMORY TUNING:            NO
   FORCED HEADROOM:          400
   AVOID ATOMICS:            NO
   MICRO NAP:                250
   ROUNDUP WIDTH:            16
   ROUNDUP HEIGHT:           16
   CHECK EVENT HANDLES:      128
   TILING ADVANTAGE:         0.000
   DEFAULT DEVICE:           NO
   KERNEL BUILD DIRECTORY:   /opt/darktable/share/darktable/kernels
   KERNEL DIRECTORY:         /home/ds/.cache/darktable/cached_v1_kernels_for_rusticlAMDRadeonGraphics_2311gitf63bcc8ad2
   CL COMPILER OPTION:       -cl-fast-relaxed-math
   KERNEL LOADING TIME:       1.1441 sec

...

[opencl_init] OpenCL successfully initialized. Internal numbers and names of available devices:
[opencl_init]		0	'rusticl AMD Radeon Graphics'
[opencl_init]		1	'NVIDIA CUDA NVIDIA GeForce RTX 3060 Laptop GPU'
[opencl_init] FINALLY: opencl is AVAILABLE and ENABLED.
darktable-cltest: ../src/gallium/drivers/radeonsi/si_buffer.c:350: si_buffer_transfer_map: Assertion `box->x + box->width <= resource->width0' failed.
Abgebrochen (Speicherabzug geschrieben)
