Return maximum value coordinates based from the sum of channel in a window in context of fill block.

To expand on the title, let’s say I have a 3 channels image with 5*5 window. I would like to return the coordinates of the max pixel using the sum of all channels using 5*5 window in context of fill block.

A short code from my head that extracts one set of coordinate.

sp cat
+compose_channels +
+z. 0,0,4,4
max_x={xM#-1}
max_y={yM#-1}

That, but in context of fill block, and return rgb using the original image using max_v per crop coordinates.

This does the job : (not tested thoroughly, but should be OK) :

foo :
   sp lena
   100%,100%,1,2,"*
     off = argmax(crop(#-1,x - 2,y - 2,0,c,5,5,1,1));
     [ off%5, int(off/5) ] - 2"

Using this code, I think it works as my goal was to return the color using the coordinates of maximum values of the sum of all channels

foo:
sp ,
1,1,1,100%,"
off=argmax(crop(#-1,x,y,0,c,5,5,1,1));
i(#-1,off%5,int(off/5));"

But then, you are only looking for the max value in a 5x5 neighborhood ? Why not using

max(crop(#-1,x,y,0,c,5,5,1,1))

then ?

Also, retrieving the max in a neighborhood is precisely the definition of the dilate operator, which is even faster to apply, with dilate 5.

Max of the sum of all channels. I find that the result is different here.

foo:
sp ,
1,1,1,100%,"
max(crop(#-1,x,y,0,c,50,50,1,1));
"
+z[0] 0,0,49,49
compose_channels. +
xc={xM#-1}
yc={yM#-1}
1,1,1,{s#0},"
i(#0,"$xc","$yc");"

In that case : compose_channels. + dilate. 5 should do the job.

I’m not working on dilating as I’m working on extending features into rep_form_pixel as now it only offers weighed average. Using compose_channels. +, and argmax to find coordinates, and then use said coordinate in context of i(#n,x,y…) in context of fill block is the answer here.


Ok, what am I doing wrong here?

foo:
ww={ceil(w/$1)*$1}
hh={ceil(h/$2)*$2}
+compose_channels +
{ceil(w/$1)},{ceil(h/$2)},1,{s#0},"
pos=argmax(crop(#-1,x*$1,y*$2,0,0,$1,$2,1,1));
i(#-2,pos%$1,int(pos/$2));"

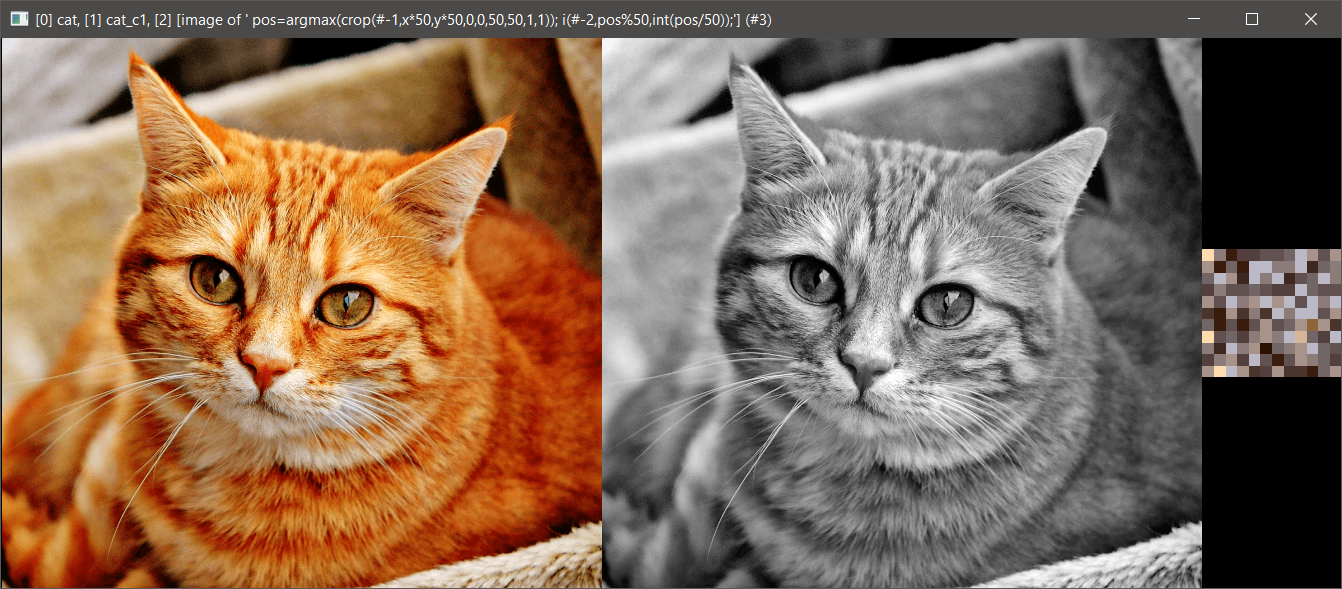

Result aren’t exactly what I expect in the right.

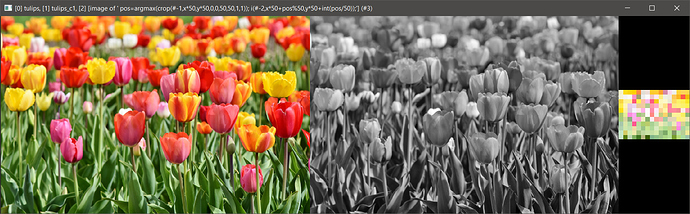

EDIT: I forgotten x*$1 and y*$2. With this instead:

foo:
ww={ceil(w/$1)*$1}
hh={ceil(h/$2)*$2}
+compose_channels +
{ceil(w/$1)},{ceil(h/$2)},1,{s#0},"
pos=argmax(crop(#-1,x*$1,y*$2,0,0,$1,$2,1,1));
i(#-2,x*$1+pos%$1,y*$2+int(pos/$2));"
