Odd line with RCD on initial demosaic, disappears if temporarily changing algo

nosle · January 23, 2021, 7:17pm

Running build 8bb06c2c4 developing SOOC DNG’s from a Pentax K-1

My photographs have a 3px black line line running 2px up from the bottom edge of the photograph. The line ends 2px from either vertical edge. See screenshot below.

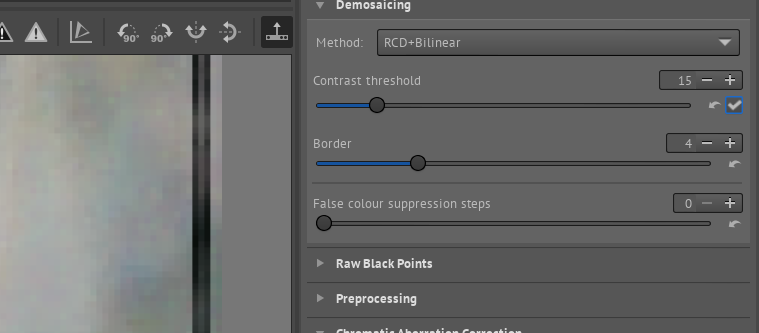

I noticed in in downsized and exported files but is visible in the editor as seen above. It behaves quite strangely. My default uses RCD/VNG4 demosaic and this is what i see (now portrait oriented photo).

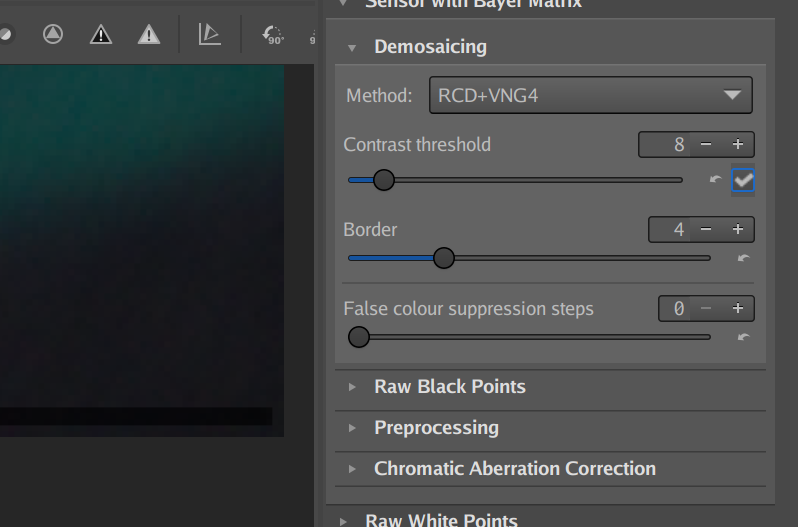

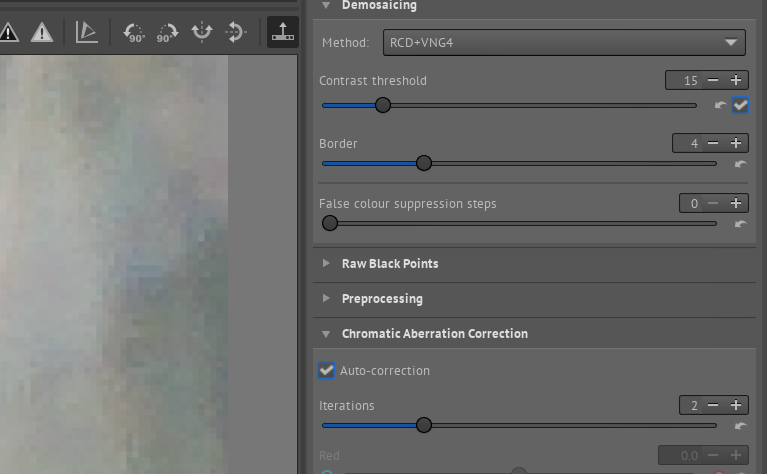

If i change to another RCD algo just to check if touching it helps. But the line remains.

Again

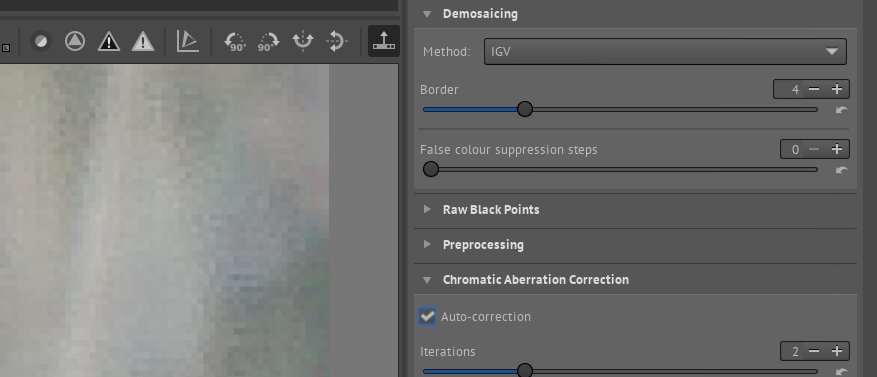

However changing to any non RCD algo makes the line go away.

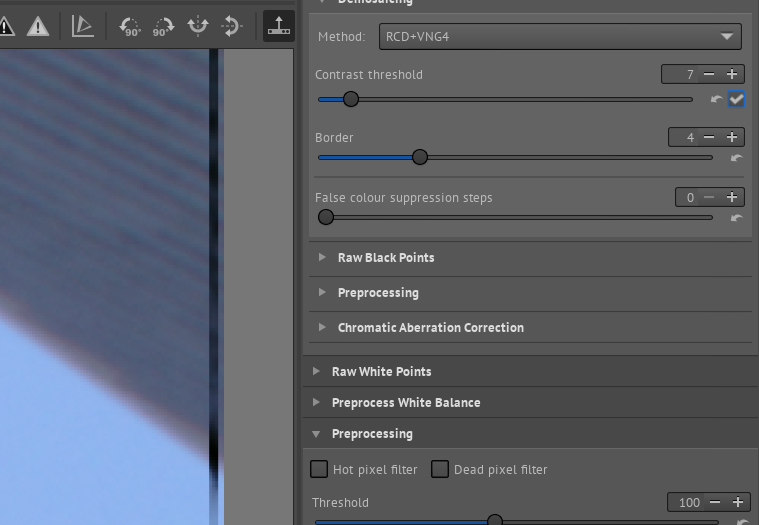

If I then switch back to RCD the line is still gone

I tried to batch change all images to amaze and then back to rcd but this didn’t remove the line. But doing it in editor works.

On the other hand if I apply neutral profile from the file tab and then immediately reset to default and open a file the line is gone.

The photographs I’m seeing this with all have my kids in them so I won’t upload raws.

Logging this mainly as a heads up for others to check or if anyone else encounters it. It might be any combination of issues creating the problem and I’m yet to fully examine it. I developed the files in a build a few days old, saw the line in the exported files, remembered someone recently having a line bug so pulled and built the most recent and the line is still there even in files I didn’t open before.

nosle · January 23, 2021, 7:29pm

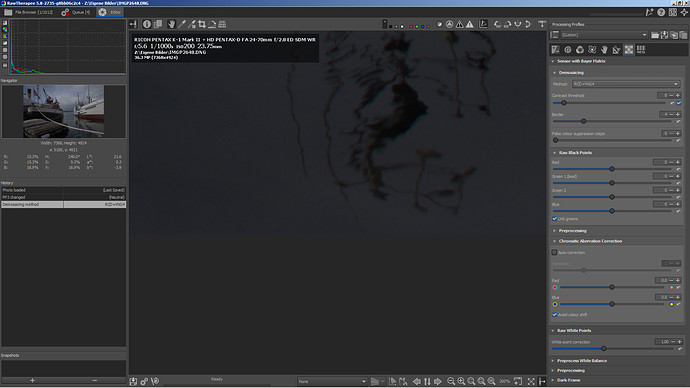

I quickly tested with a dpreview file from Pentax K-1 Sample Image Gallery: Digital Photography Review
And the line persists

Pentax K-1 Sample Image Gallery: Digital Photography Review

This is the full pp3 of the dpreview file
